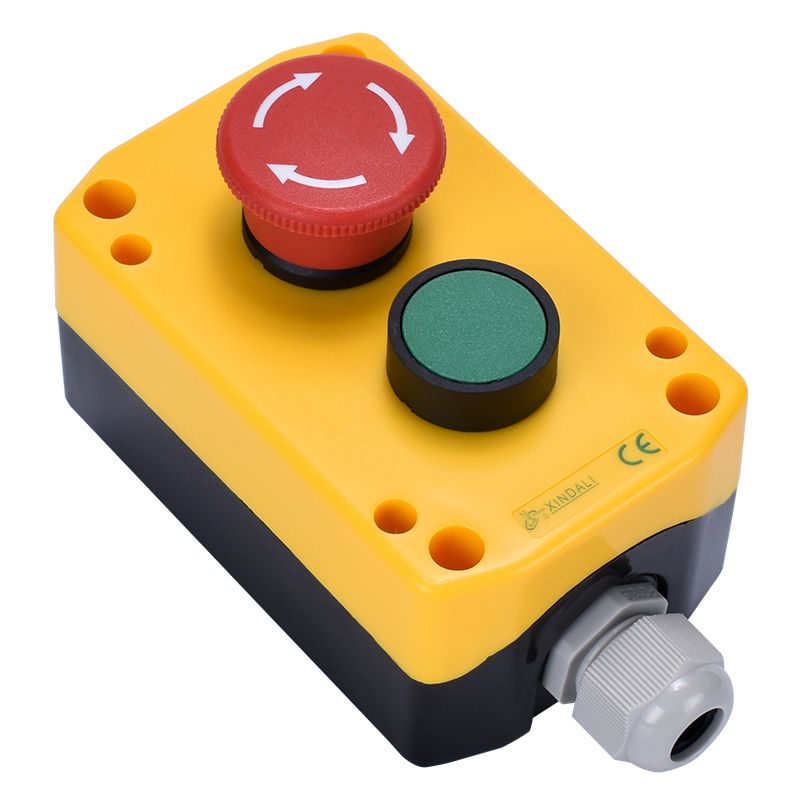

XDL75-JB261P (6)-emergency stop control box.JPG

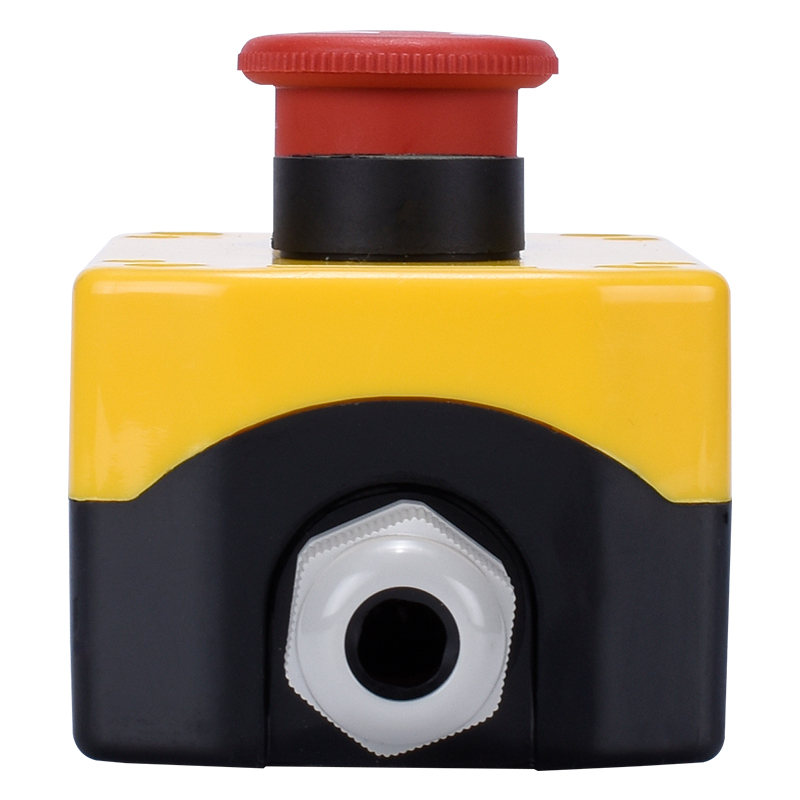

XDL75-JB261P (4)-emergency stop control box.JPG

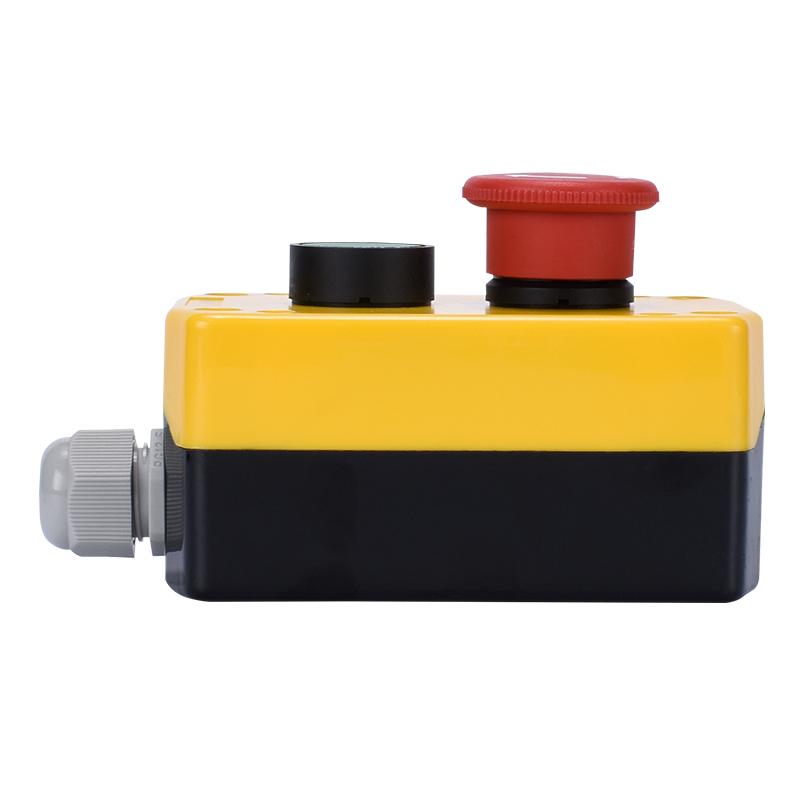

XDL75-JB261P (3)-emergency stop control box.JPG

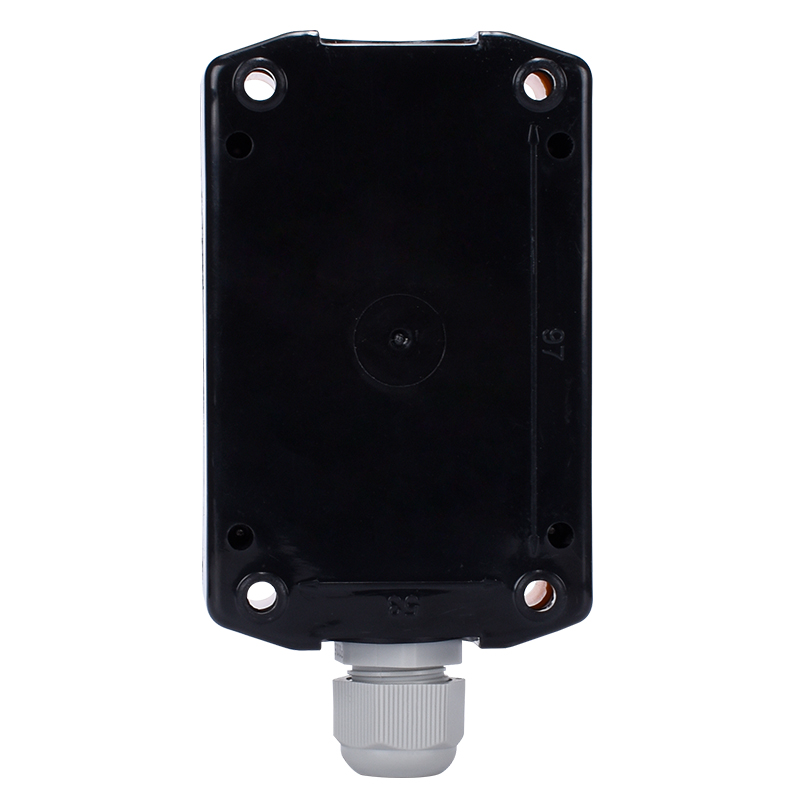

XDL75-JB261P (2)-emergency stop control box.JPG

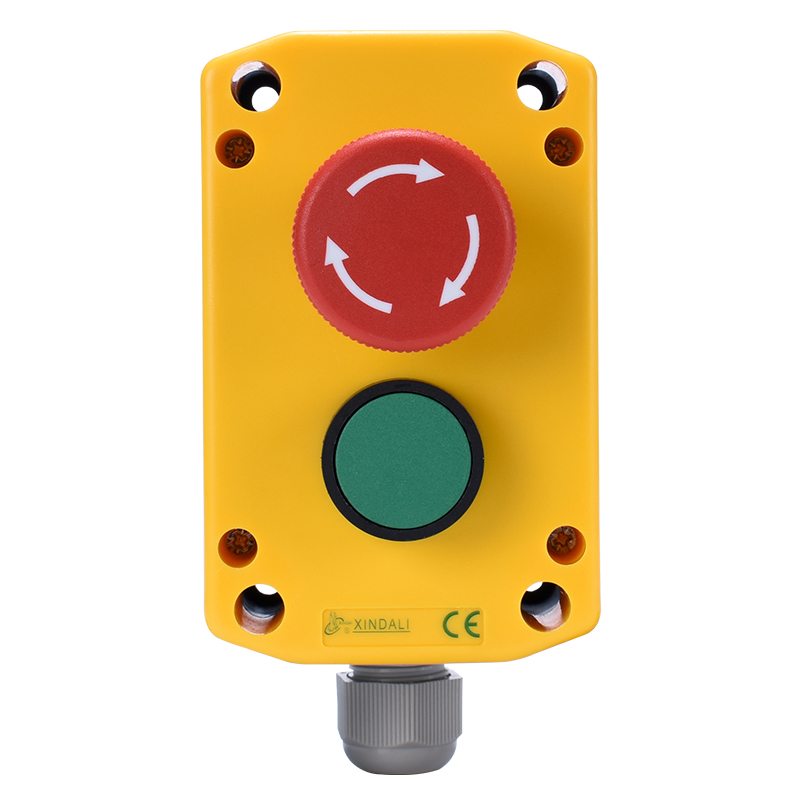

XDL75-JB261P (1)-emergency stop control box.JPG

XDL75-JB261P Emergency Stop and Start Push Button Control Box | XINDALI

XDL75-JB261P from XINDALI XDL75 Series is a 2-hole emergency stop and start push button control box with turn-to-release e-stop, spring-return flush push button, 1NC + 1NO contact, and PG13.5 cable entry.

  • Product Model XDL75-JB261P
  • Product Type Emergency Stop and Start Push Button Control Box
  • Box Structure 2 Hole Control Box
  • Button Type Flush Push Button, Spring Return
  • Contact Type 1NC + 1NO
  • Button Color Red Emergency Stop + Green Push Button
  • Cable Entry PG13.5
  • Box Size 119 × 75 mm
Contact us Download
Product Detail

XINDALI | XDL75 Series

XDL75-JB261P Emergency Stop and Start Push Button Control Box

Compact 2-hole control box with 1 emergency stop turn-to-release button and 1 flush spring-return push button, designed for industrial control panels, machinery, and automation equipment.
2 Hole Control Box Emergency Stop + Start Button 1NC + 1NO PG13.5 Cable Entry

Product Overview

The XDL75-JB261P is a practical and highly visible push button control box from the XDL75 Series. It combines a red emergency stop button with a green flush push button in one compact enclosure, making it suitable for machine start-stop control and emergency shutdown applications.

This model features a turn-to-release emergency stop, a spring-return flush push button, and a 1NC + 1NO contact combination. Its compact structure and cable gland entry make installation convenient for industrial control systems, production equipment, and automation panels.

XDL75-JB261P (1)-emergency stop control box.JPGXDL75-JB261P (4)-emergency stop control box.JPGXDL75-JB261P (3)-emergency stop control box.JPG

Key Features

Emergency Stop + Start Function
Integrates emergency stop and start control in one box for clear and efficient machine operation.
Turn-to-Release E-Stop
The red mushroom head emergency stop is reset by rotation, helping improve operational safety.
Spring Return Push Button
The green flush push button adopts spring-return operation for responsive momentary control.
Flexible Contact Combination
Configured with 1NC + 1NO, suitable for basic start-stop and safety control logic.
Compact XDL75 Housing
The compact enclosure helps save panel space while keeping the operator interface clear and easy to access.
Convenient Wiring
Equipped with PG13.5 cable entry for secure installation and practical on-site wiring.

Technical Specifications

Product Model XDL75-JB261P
Series XDL75 Series
Product Type Emergency Stop and Start Push Button Control Box
Control Box Structure 2 Hole Control Box
Emergency Stop Type Turn to Release
Push Button Type Flush Push Button, Spring Return
Contact Configuration 1NC + 1NO
Button Color Red Emergency Stop + Green Push Button
Cable Entry PG13.5
Overall Size 119 × 75 mm
Application Type Machine Start-Stop and Safety Control

Applications

The XDL75-JB261P is widely used in industrial control and operator interface scenarios, including:

• Machinery manufacturing
• Automation equipment
• Industrial control panels
• Conveyor and handling systems
• Packaging equipment
• Assembly line stations
• Electrical cabinets
• General machine operator stations

Why Choose XINDALI

Factory Direct Supply
Direct manufacturer support for industrial push button boxes and control assemblies.
Flexible Configuration
Different hole structures, button combinations, and contact layouts are available for project needs.
OEM / ODM Support
Support for logo marking, custom combination assembly, and project-oriented matching.
Industrial Application Focus
Designed for practical use in machine control, safety stop systems, and automation interfaces.

Explore More Solutions

Looking for more industrial control products? Browse our Push Button Control Station solutions or view more XDL75 Series control boxes.

Need a Custom Emergency Stop Control Box?

Contact XINDALI for quotation, technical details, and OEM support for your industrial control project.

Send Inquiry Now

Frequently Asked Questions

Learn more about the XDL75-JB261P emergency stop and start push button control box.

1. What is the XDL75-JB261P used for?

The XDL75-JB261P is used for machine start-stop control and emergency shutdown applications. It combines one emergency stop button and one flush push button in a compact 2-hole control box, making it suitable for industrial machinery, automation equipment, and control panels.

2. What buttons are included in the XDL75-JB261P control box?

This model includes one red emergency stop button with turn-to-release operation and one green flush push button with spring return. This combination is commonly used for stop and start control functions.

3. What is the contact configuration of the XDL75-JB261P?

The XDL75-JB261P is configured with 1NC + 1NO contacts. This contact arrangement is suitable for many basic machine control and safety circuit applications.

4. How is the emergency stop button reset?

The emergency stop button is reset by turning it to release. This design helps prevent accidental reset and improves operator safety in industrial environments.

5. What industries can use the XDL75-JB261P?

This control box can be used in machinery manufacturing, automation systems, conveyor equipment, packaging machines, industrial control panels, and general operator stations that require start-stop and emergency stop functions.

6. Does XINDALI support OEM or custom solutions for control boxes?

Yes. XINDALI can support OEM and customized solutions based on project requirements, including different button combinations, contact layouts, enclosure structures, and logo marking.

7. How can I get a quotation for the XDL75-JB261P?

You can contact XINDALI directly through the inquiry form on the website. If you have specific requirements such as quantity, cable entry, button configuration, or OEM needs, you can include them in your inquiry for a faster quotation.
