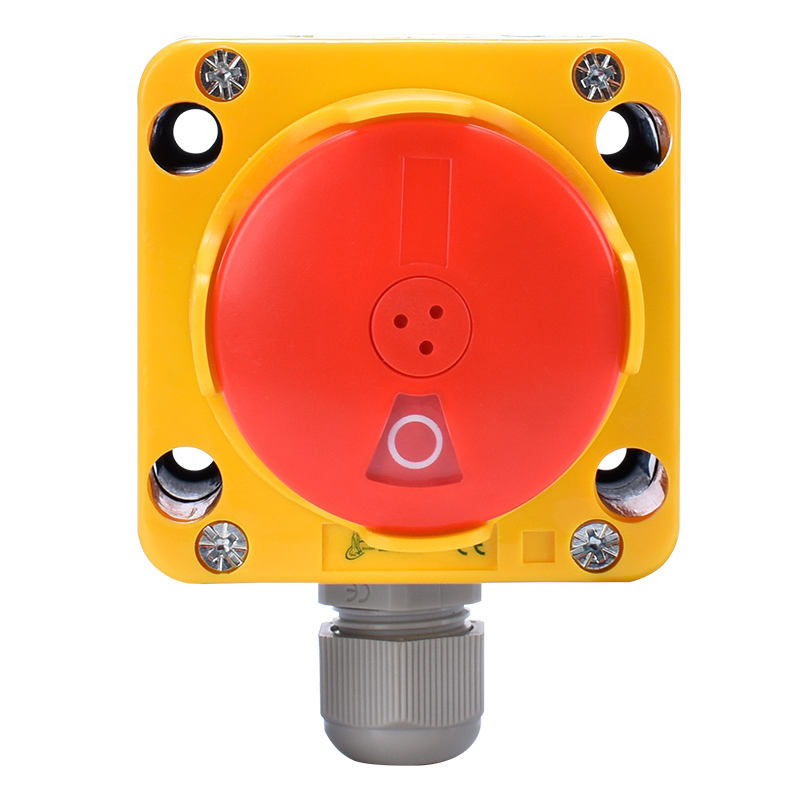

XDL75-JB181P (1).JPG

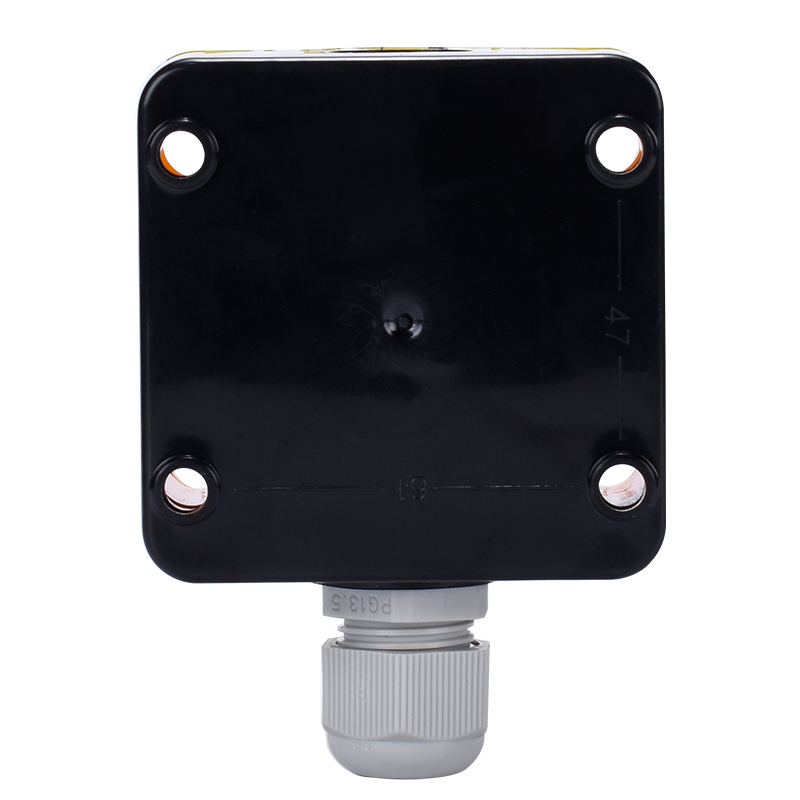

XDL75-JB181P (6).JPG

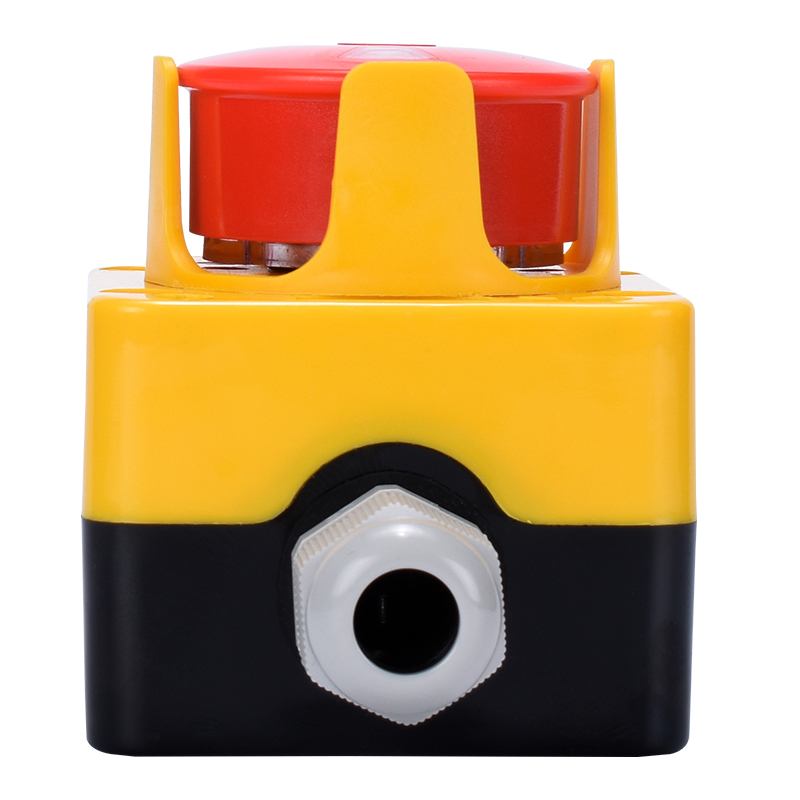

XDL75-JB181P (4).JPG

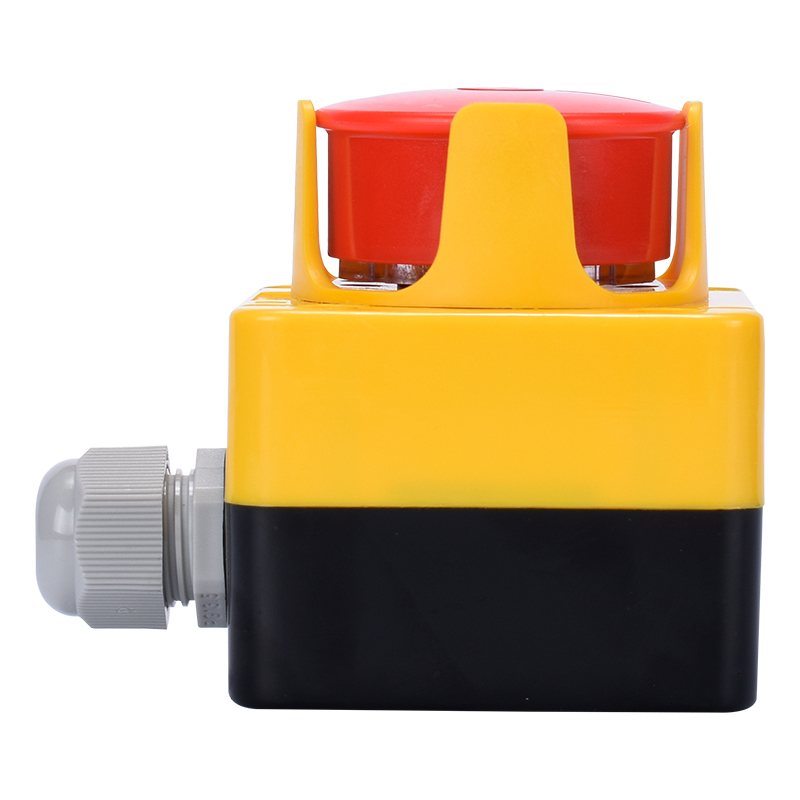

XDL75-JB181P (3).JPG

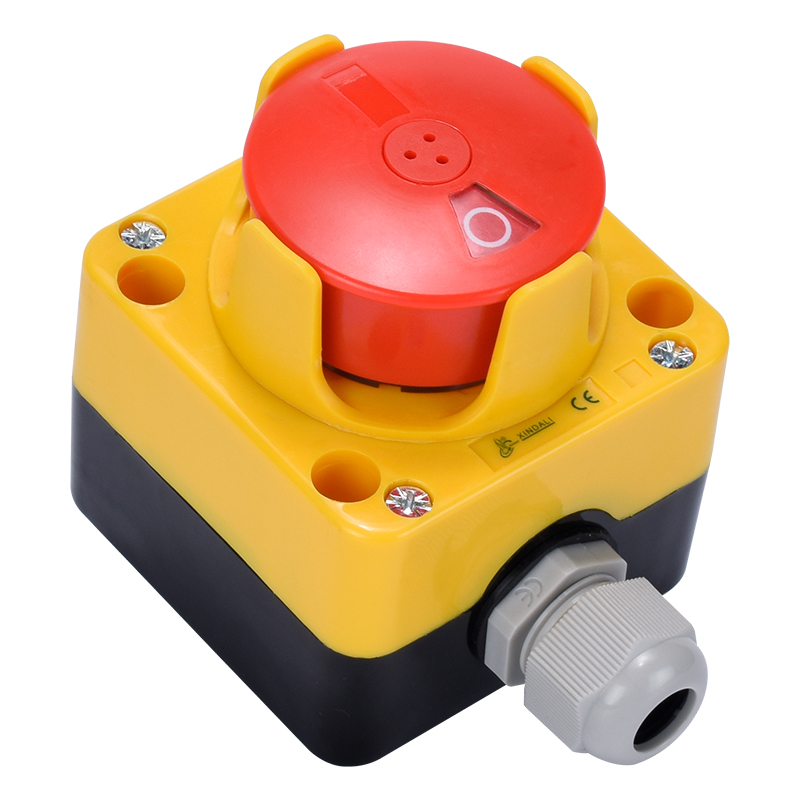

XDL75-JB181P (2).JPG

XDL75-JB181P Emergency Stop Control Box | XDL75 Series

The XDL75-JB181P Emergency Stop Control Box from the XDL75 Series is a compact and reliable industrial safety control station designed for quick emergency shutdown. It features 1 emergency stop push-pull button, 1 N/C contact, and a durable yellow/black enclosure for industrial environments. This model is suitable for machinery, automation equipment, production lines, and other control systems requiring a clear and immediate stop function.

  • Product Model XDL75-JB181P
  • Product Type Emergency Stop Control Box
  • Box Structure 1 Hole Control Box
  • Button Type Emergency Stop Push-Pull
  • Contact Type 1 N/C
  • Indication Window Indication
  • Housing Color Yellow / Black
  • Head Color Red
  • Cable Entry PG13.5
  • Box Size 75 × 75 mm
  • Height 56 mm
Contact us
Product Detail

XINDALI | XDL75 Series

XDL75-JB181P Emergency Stop Control Box

Compact industrial emergency stop control box with 1 emergency stop push-pull button, 1 N/C contact, and window indication, designed for machinery safety and control circuit interruption.
1 Hole Control Box Emergency Stop Push-Pull 1 N/C Contact PG13.5 Cable Entry

Product Overview

The XDL75-JB181P is a practical and highly visible emergency stop control box developed for industrial safety applications. As part of the XDL75 Series, this model combines a compact enclosure with a large red mushroom head actuator, making it easy for operators to identify and use in urgent situations.

Designed with a 1-hole control box structure, this unit integrates 1 emergency stop push-pull switch and 1 normally closed (N/C) contact to help interrupt the control circuit quickly when needed. The visible window indication improves operational recognition and supports safer equipment use.

Key Features

Fast Emergency Shutdown
Large red mushroom head allows quick and clear emergency stop operation in machine safety situations.
Push-Pull Operation
Straightforward push-pull structure supports convenient actuation and reset in industrial control systems.
1 N/C Contact
Normally closed contact design is suitable for stop circuits requiring reliable interruption when pressed.
Window Indication
Built-in window indication provides a clearer visual reference during operation and reset status checking.
Compact Housing
75 × 75 mm control box structure helps save installation space while maintaining clear accessibility.
Cable Protection Entry
PG13.5 cable entry supports secure wiring access and helps protect the cable connection point.

Technical Specifications

Product Model XDL75-JB181P
Series XDL75 Series
Product Type Emergency Stop Control Box
Control Box Structure 1 Hole Control Box
Operator Type Emergency Stop Push-Pull
Contact Configuration 1 N/C
Indication Window Indication
Housing Color Yellow / Black
Actuator Color Red
Cable Entry PG13.5
Box Size 75 × 75 mm
Body Width 56 mm

Applications

The XDL75-JB181P emergency stop station can be used in a wide range of industrial equipment and safety control systems, including:

• Industrial machinery
• Production lines
• Packaging equipment
• Conveyor systems
• Automation devices
• Electrical control systems
• Workshop equipment
• Machine safety stop stations

XDL75-JB181P (1).JPGXDL75-JB181P (2).JPGXDL75-JB181P (3).JPGXDL75-JB181P (6).JPG


Why Choose XINDALI

Factory Direct Supply
Direct manufacturer support for industrial control products and assemblies.
OEM / ODM Support
Flexible service for special project requirements and customized solutions.
Stable Quality Focus
Clear product structure and practical design for industrial use scenarios.
Fast Inquiry Response
Quick communication for specifications, quotations, and sample requests.

Customization Support

For project-based orders, XINDALI can support customized solutions according to actual application needs.

• Different button combinations
• Contact configuration options
• Label or logo customization
• Cable entry options
• Control box assembly solutions
• Project-oriented industrial matching

Need a Reliable Emergency Stop Control Box Supplier?

Contact XINDALI for product details, quotation, and OEM support. We are ready to support your industrial control projects.
