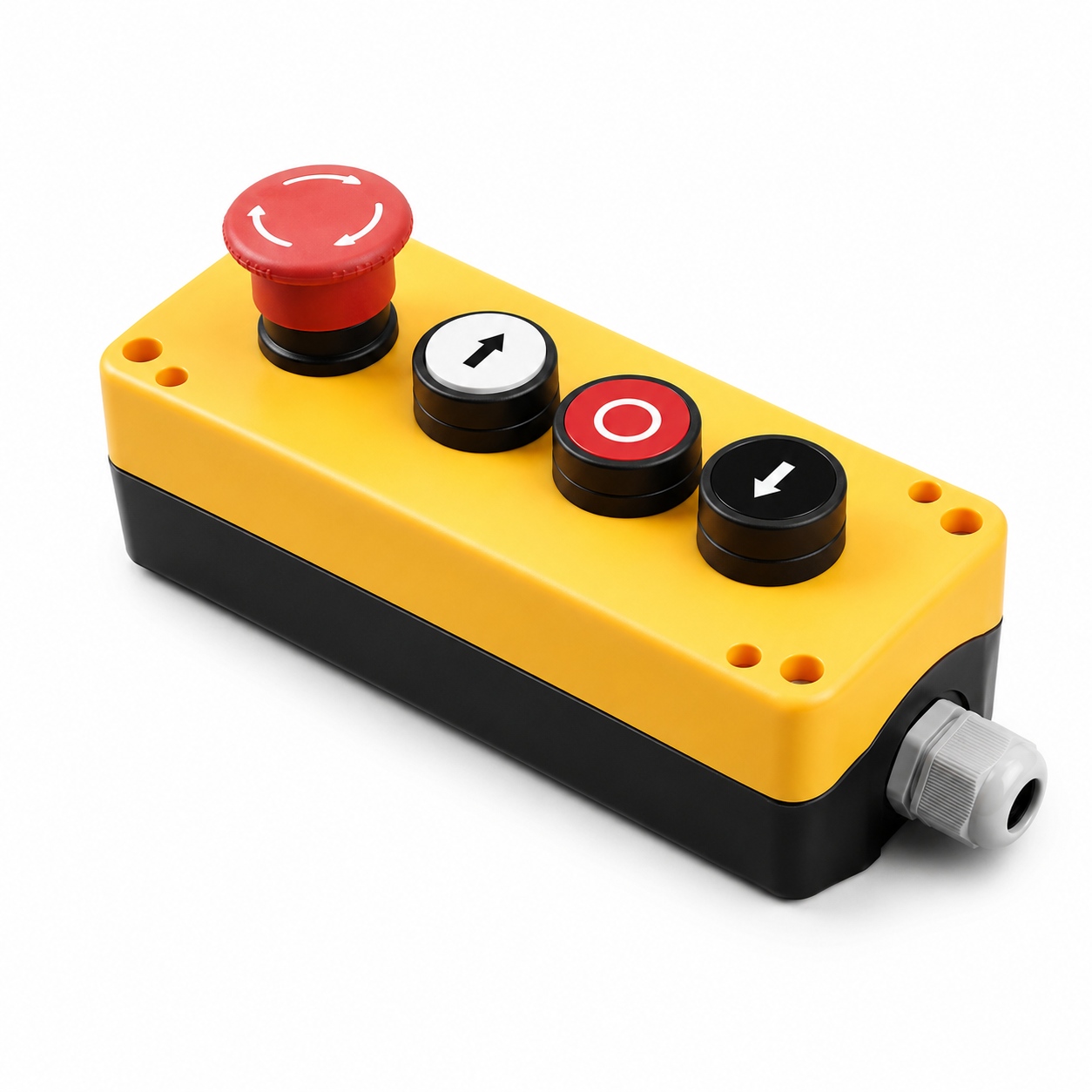

XDL75 Series Push Button Control Box (1).jpg

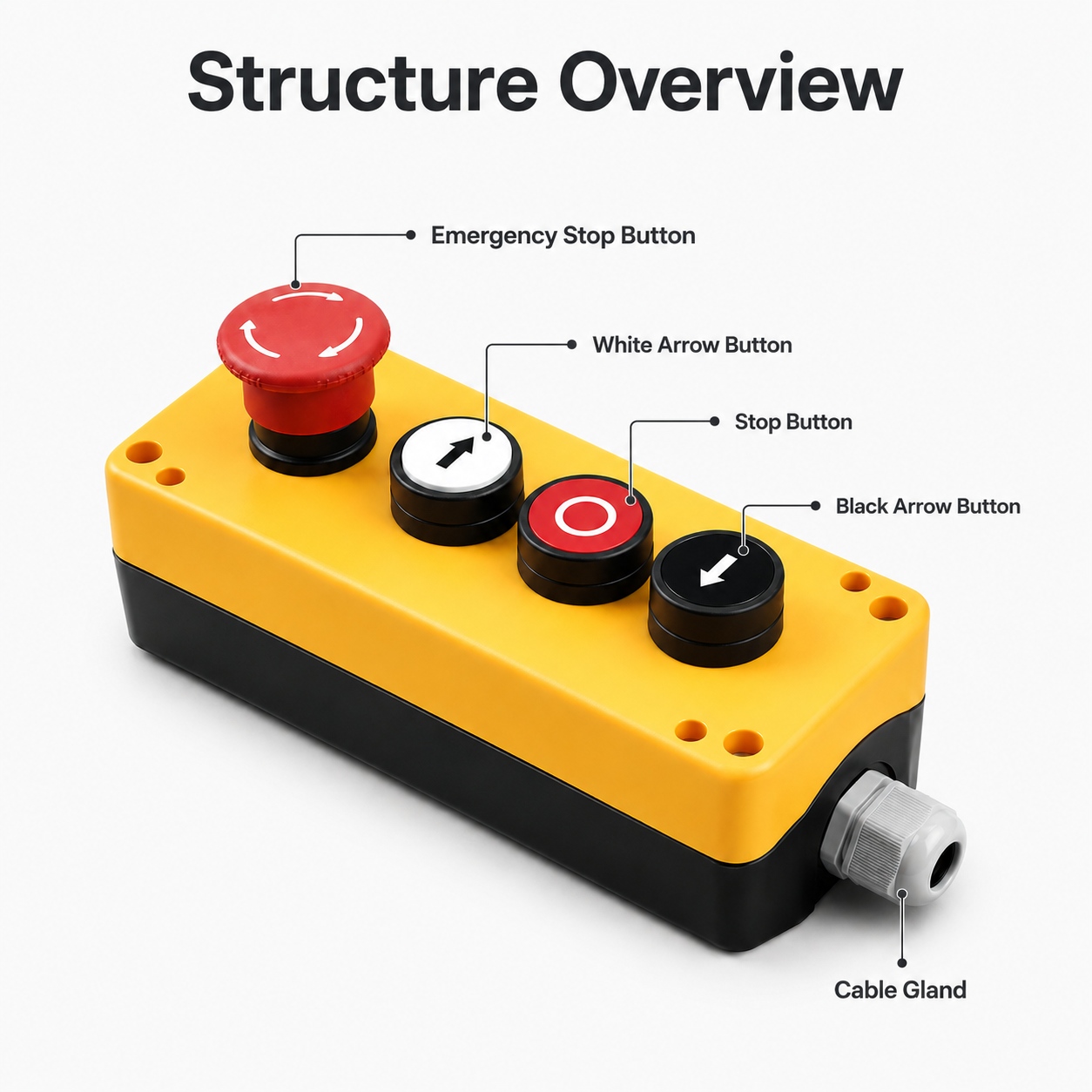

XDL75 Series Push Button Control Box (2).jpg

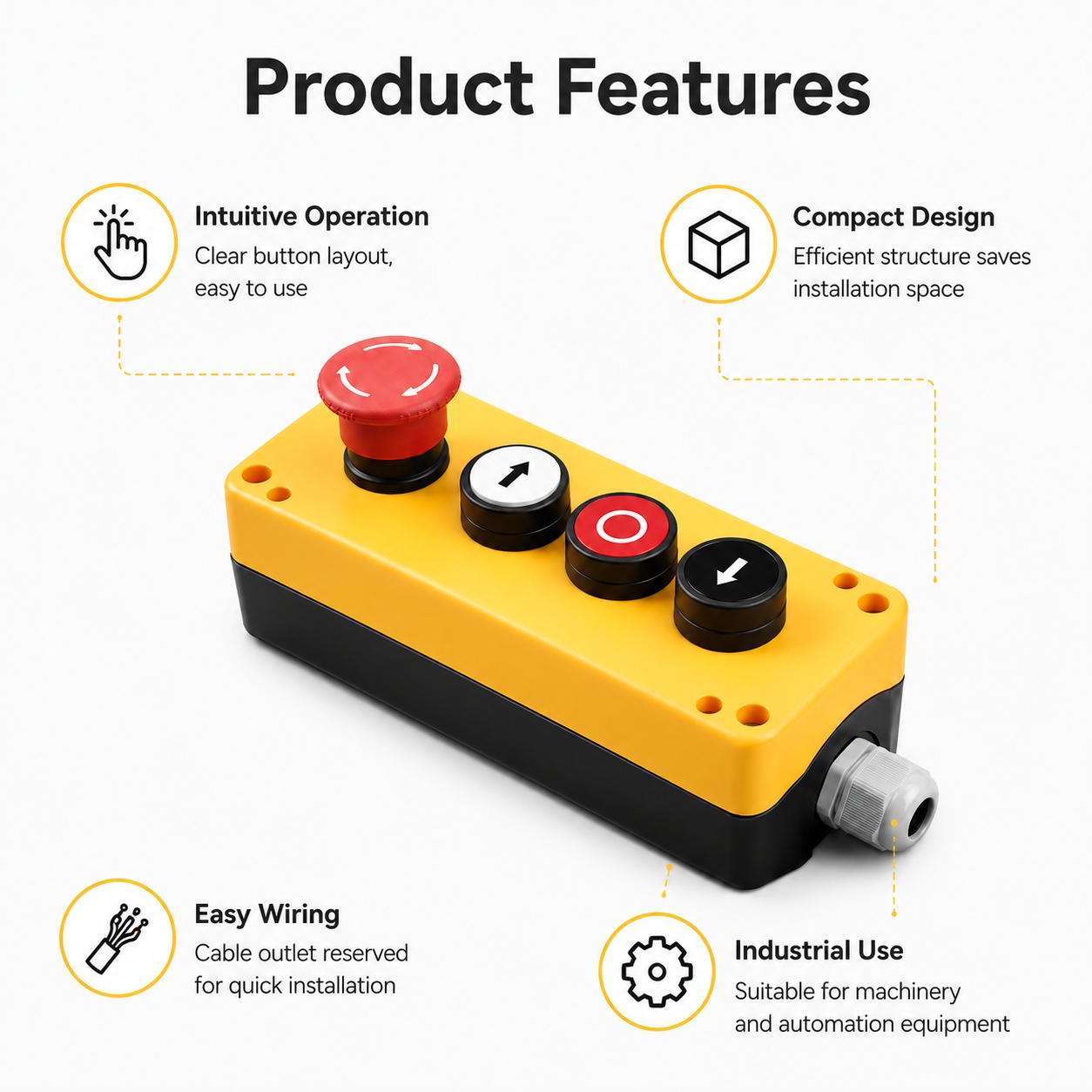

XDL75 Series Push Button Control Box (3).jpg
XDL75 Series Push Button Control Box (4).jpg
XDL75 Series Push Button Control Box (5).jpg

XDL75-JB424P Emergency Stop and Triple Push Button Control Box | XINDALI

XDL75-JB424P from XINDALI XDL75 Series is a 4-hole emergency stop and triple push button control box with turn-to-release e-stop, 3 spring-return flush push buttons, N/C + N/O + N/C + N/O contact layout, and PG13.5 cable entry.

  • Product Model XDL75-JB424P
  • Product Type Emergency Stop and Dual Push Button Control Box
  • Box Structure 4 Hole Control Box
  • Button Type 3 Flush Push Buttons, Spring Return
  • Contact Type N/C + N/O + N/C + N/O
  • Cable Entry PG13.5
  • Box Size 193 × 75 mm
  • Body Width 56 mm
  • Working Temperature -40°C to +70°C
Contact us
Product Detail

XINDALI | XDL75 Series

XDL75-JB424P Emergency Stop and Triple Push Button Control Box

Compact 4-hole control box with 1 turn-to-release emergency stop button and 3 flush spring-return push buttons, designed for industrial control panels, machinery operator stations, and multi-command control applications.
4 Hole Control Box Turn-to-Release E-Stop 3 Flush Push Buttons N/C + N/O + N/C + N/O PG13.5 Cable Entry

Product Overview

The XDL75-JB424P is a practical emergency stop and multi-button control box from the XDL75 Series. This model integrates one emergency stop button and three flush push buttons into one elongated enclosure, making it suitable for industrial equipment that requires multiple operator commands from a single station.

It features a turn-to-release emergency stop, 3 spring-return push buttons, and a N/C + N/O + N/C + N/O contact layout. With its compact housing and PG13.5 cable entry, the XDL75-JB424P is suitable for machine-side installation, panel-side operation, and control interfaces requiring clearly separated command buttons.

Key Features

Integrated 4-Hole Structure
Combines emergency stop and triple push button control in one compact station for cleaner panel layout.
Turn-to-Release Emergency Stop
The red emergency stop button resets by rotation, helping improve operational safety.
3 Spring-Return Push Buttons
The three flush push buttons support momentary operation for multi-command machine control.
Flexible Contact Layout
Configured as N/C + N/O + N/C + N/O, suitable for many industrial wiring logics.
Easy Wiring Installation
Equipped with PG13.5 cable entry for convenient cable routing and installation.
Suitable for Multi-Command Control
Ideal for applications requiring separate directional, auxiliary, or function button commands in one station.

Technical Specifications

Product Model XDL75-JB424P
Series XDL75 Series
Product Type Emergency Stop and Triple Push Button Control Box
Control Box Structure 4 Hole Control Box
Emergency Stop Type Turn to Release
Push Button Type 3 Flush Push Buttons, Spring Return
Contact Layout N/C + N/O + N/C + N/O
Cable Entry PG13.5
Overall Size 193 × 75 mm
Body Width 56 mm

Applications

The XDL75-JB424P is suitable for operator control and multi-function command systems, including:

• Industrial control panels
• Machinery operator stations
• Automation equipment
• Conveyor and handling systems
• Equipment directional control
• Multi-command machine interfaces
• Custom control box assemblies
• OEM machinery projects

Why Choose XINDALI

Factory Direct Supply
Direct manufacturer support for industrial push button control box solutions.
Flexible Control Layout
Supports multi-button logic for equipment requiring more than simple start-stop operation.
OEM / ODM Support
Custom combinations, structure matching, and project-based assembly support are available.
Industrial Application Focus
Designed for practical use in machine-side control, automation operation, and safety-related interfaces.

People Also Ask

Common buyer questions about 4-hole emergency stop control boxes.

What is a 4-hole emergency stop control box used for?

A 4-hole emergency stop control box is used when a machine requires one safety stop function together with multiple command buttons in a single operator station. It is commonly applied in industrial machinery, automation equipment, and custom control systems.

What does turn-to-release mean on the XDL75-JB424P?

Turn-to-release means the emergency stop button must be rotated to reset after it has been pressed. This structure helps reduce accidental restart and is widely used in industrial safety control applications.

How many push buttons are included in the XDL75-JB424P?

The XDL75-JB424P includes one emergency stop button and three flush push buttons. The three flush buttons use spring-return operation for momentary control input.

What does N/C + N/O + N/C + N/O mean?

This means the control box includes alternating normally closed and normally open contact functions according to the button layout. It provides more flexible wiring possibilities for machine command and safety circuits.

Can the XDL75-JB424P be used for directional or multi-command control?

Yes. Depending on the circuit design, the XDL75-JB424P can be used for directional commands, auxiliary functions, or multi-command operator interfaces that require several separate momentary buttons together with emergency stop protection.

What cable entry does the XDL75-JB424P use?

The XDL75-JB424P is equipped with a PG13.5 cable entry, which helps provide practical cable routing and installation convenience for industrial control applications.

Can XINDALI provide customized control box combinations?

Yes. XINDALI can support OEM and customized control box projects based on customer requirements, including different hole layouts, button combinations, contact arrangements, and assembly matching.
