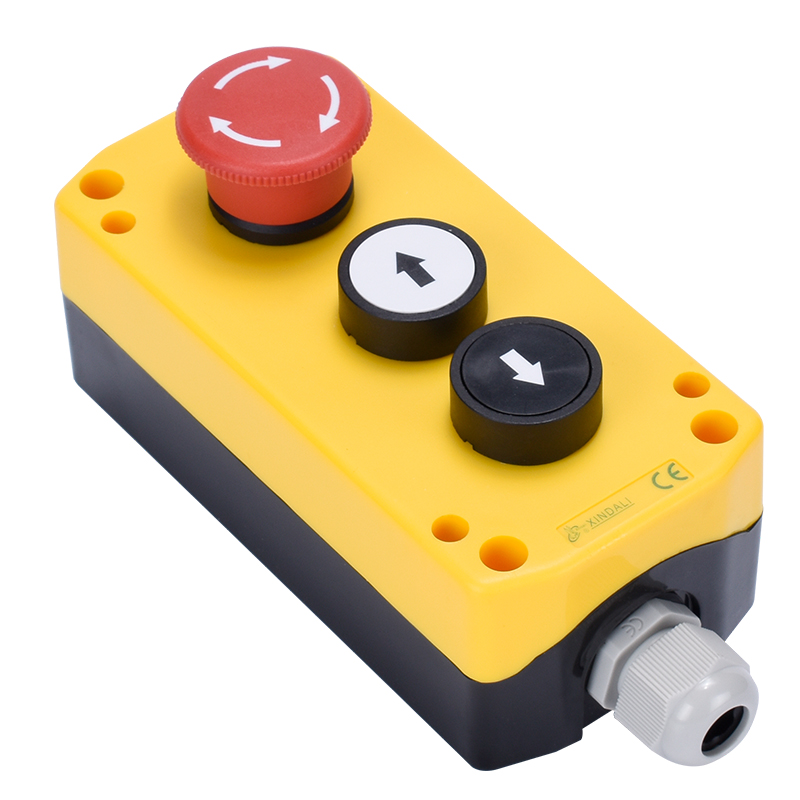

XDL75-JB364P (6)-industrial push button station.JPG

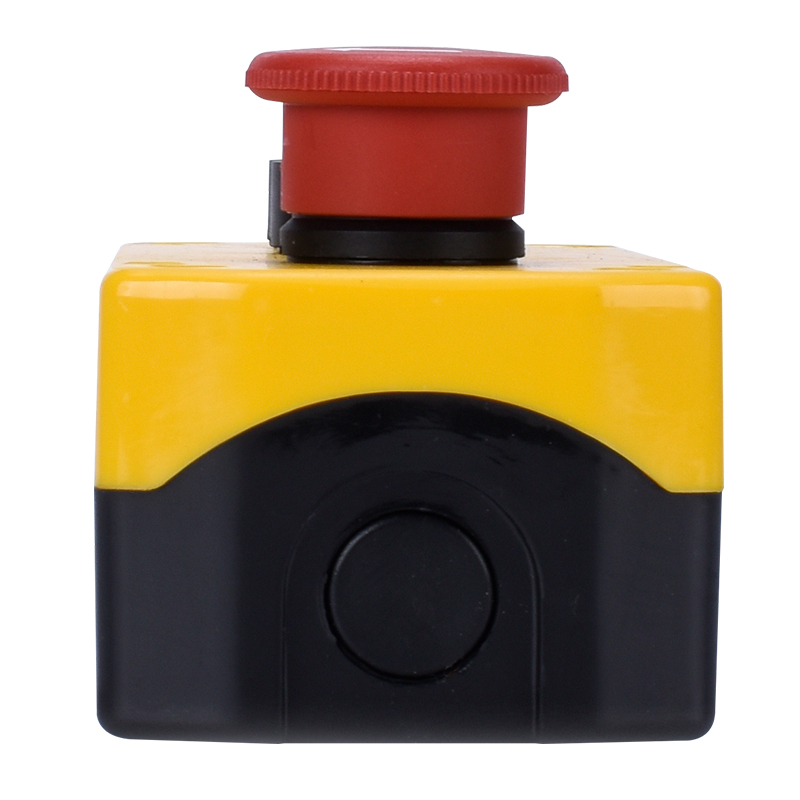

XDL75-JB364P (5)-industrial push button station.JPG

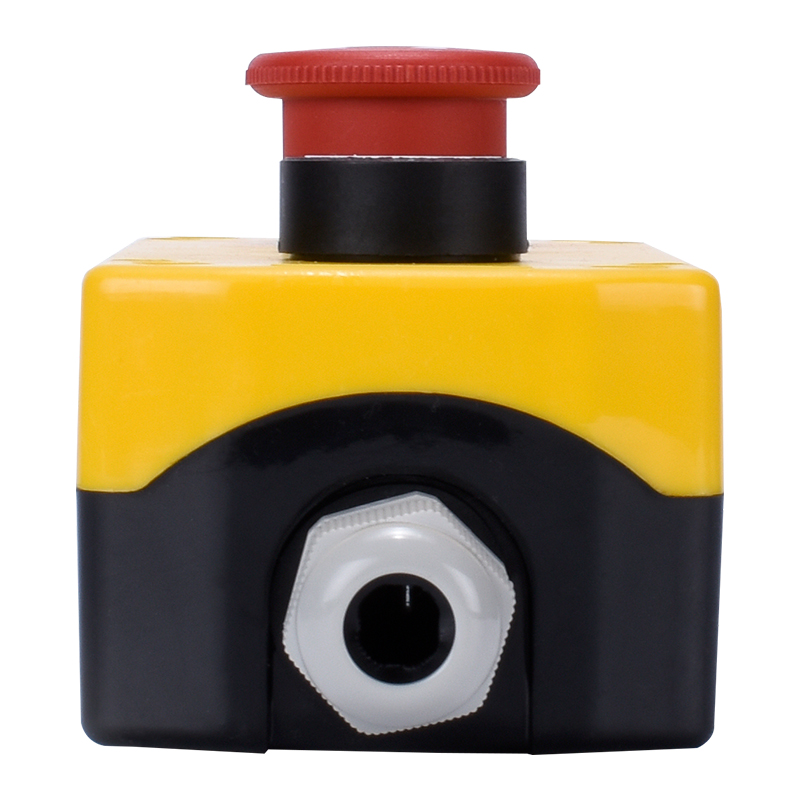

XDL75-JB364P (4)-industrial push button station.JPG

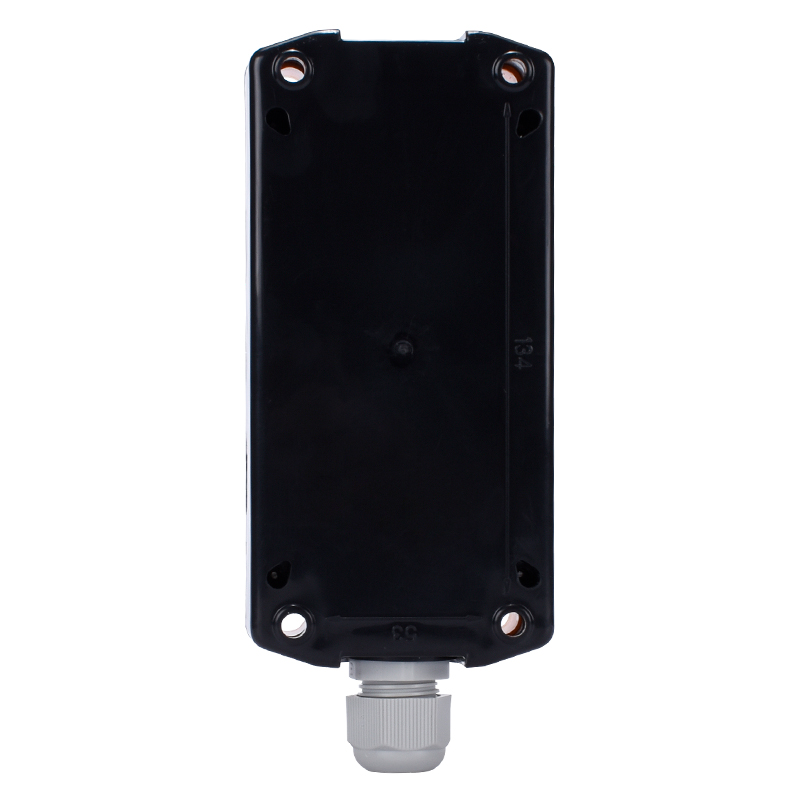

XDL75-JB364P (2)-industrial push button station.JPG

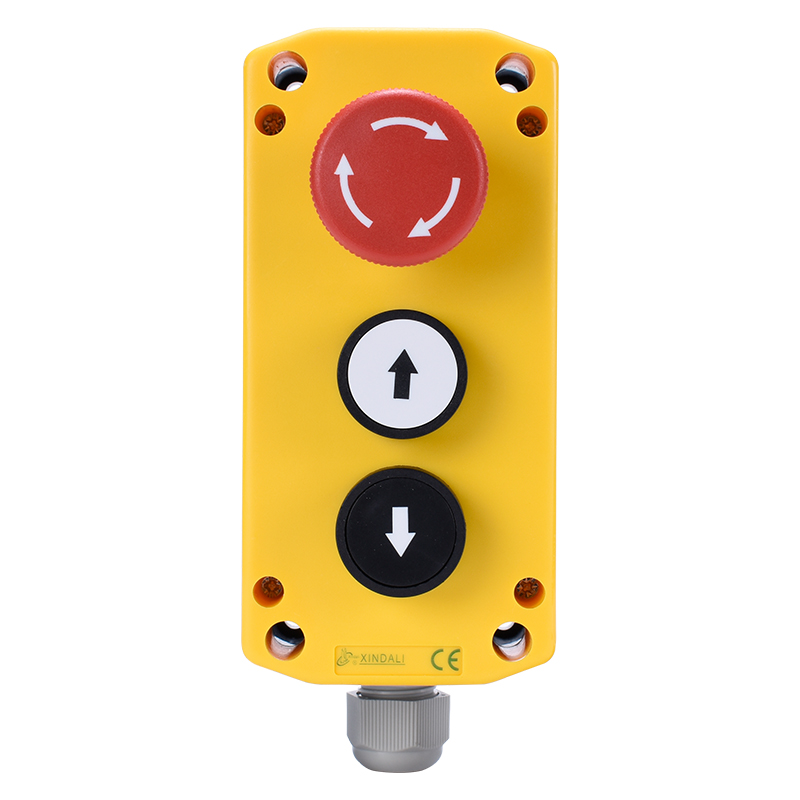

XDL75-JB364P (1)-industrial push button station.JPG

XDL75-JB261P Emergency Stop and Start Push Button Control Box | XINDALI-1

XDL75-JB364P from XINDALI XDL75 Series is a 3-hole emergency stop and dual push button control box with turn-to-release e-stop, 2 spring-return flush push buttons, 1NC + 2NO contacts, PG13.5 cable entry, and -40°C to +70°C working temperature.

  • Product Model XDL75-JB364P
  • Product Type Emergency Stop and Dual Push Button Control Box
  • Box Structure 3 Hole Control Box
  • Button Type 2 Flush Push Buttons, Spring Return
  • Contact Type 1NC + 2NO
  • Button Color Red Emergency Stop + Green Push Button
  • Cable Entry PG13.5
  • Box Size 155 × 75 mm
  • Body Width 56 mm
  • Working Temperature -40°C to +70°C
Contact us
Product Detail

XINDALI | XDL75 Series

XDL75-JB364P Emergency Stop and Dual Push Button Control Box

Compact 3-hole control box with 1 turn-to-release emergency stop and 2 spring-return flush push buttons, designed for industrial machinery, automation systems, and operator control applications.
3 Hole Control Box Turn-to-Release E-Stop 1NC + 2NO PG13.5 Cable Entry -40°C to +70°C

Product Overview

The XDL75-JB364P is a practical emergency stop and dual push button control box from the XDL75 Series. It combines one red emergency stop actuator with two flush push buttons in one compact enclosure, helping users build a clear and efficient operator interface for industrial equipment.

This model features a turn-to-release emergency stop, 2 spring-return flush push buttons, and a 1NC + 2NO contact layout. With a PG13.5 cable entry, compact housing, and working temperature range of -40°C to +70°C, it is suitable for machinery control, automation systems, and industrial control panels.

Key Features

Integrated 3-Hole Layout
Combines emergency stop and dual push button functions in one box for a cleaner and more efficient control interface.
Turn-to-Release Emergency Stop
The red mushroom head emergency stop is reset by rotation, helping reduce accidental restart risk.
Dual Spring-Return Buttons
Two flush push buttons provide responsive momentary operation for start, jog, directional, or auxiliary control logic.
1NC + 2NO Contacts
The contact arrangement supports common industrial control circuits requiring one stop contact and two command contacts.
Wide Working Temperature
Designed for operation from -40°C to +70°C, suitable for demanding industrial environments.
PG13.5 Cable Entry
The PG13.5 cable entry with metal locking structure helps improve wiring stability and installation convenience.

Technical Specifications

Product Model XDL75-JB364P
Series XDL75 Series
Product Type Emergency Stop and Dual Push Button Control Box
Control Box Structure 3 Hole Control Box
Emergency Stop Type Turn to Release
Push Button Type 2 Flush Push Buttons, Spring Return
Contact Configuration 1NC + 2NO
Cable Entry PG13.5
Locking Nut Metal Lock Nut
Overall Size 155 × 75 mm
Body Width 56 mm
Working Temperature -40°C to +70°C

Applications

The XDL75-JB364P is widely used in operator control and machine interface systems, including:

• Machinery manufacturing
• Automation equipment
• Industrial control panels
• Packaging machines
• Conveyor systems
• Assembly line stations
• General machine operator stations
• Equipment start-stop interfaces

XDL75-JB364P (1)-industrial push button station.JPGXDL75-JB364P (6)-industrial push button station.JPGXDL75-JB364P (4)-industrial push button station.JPG

Why Choose XINDALI

Factory Direct Supply
Direct manufacturer support for industrial push button stations and control box assemblies.
Flexible Button Combinations
Support for different hole layouts, emergency stop types, and push button combinations.
OEM / ODM Capability
Custom marking, logo, wiring options, and assembly support for project-based orders.
Industrial Application Focus
Designed for practical use in machine control, safety functions, and operator interface systems.

People Also Ask

Common questions buyers ask before choosing a 3-hole emergency stop control box.

What is a 3-hole emergency stop and push button control box used for?

A 3-hole emergency stop and push button control box is used to combine safety stop and operator command functions in one compact enclosure. It is commonly installed on machinery, automation equipment, and industrial control panels where users need emergency stop and additional momentary button control in the same station.

What does turn-to-release mean on the XDL75-JB364P?

Turn-to-release means the emergency stop button must be rotated to reset after being pressed. This helps reduce accidental restart and is widely used in industrial safety control applications.

Can the XDL75-JB364P be used for start-stop or directional control?

Yes, depending on the circuit design. With one emergency stop contact and two momentary push button contacts, the XDL75-JB364P can be used in many machine control applications such as start-stop logic, jog control, or forward-reverse style command input.

What does 1NC + 2NO mean in this control box?

1NC + 2NO means the control box includes one normally closed contact for the emergency stop and two normally open contacts for the flush push buttons. This arrangement is suitable for many standard industrial control circuits.

Why choose a control box with two spring-return push buttons?

Two spring-return push buttons allow users to send separate momentary commands from one operator station. This is useful when a machine requires two independent actions, such as start and jog, up and down, or forward and reverse.

Is the XDL75-JB364P suitable for industrial environments?

The XDL75-JB364P is designed for industrial operator control applications. Its compact enclosure, practical wiring entry, and wide working temperature range of -40°C to +70°C make it suitable for many machine-side and panel-side installations.

Can XINDALI provide OEM or custom configurations for XDL75 Series control boxes?

Yes. XINDALI can support OEM and custom projects based on customer requirements, including different button combinations, enclosure structures, cable entry options, contact layouts, and logo marking.
