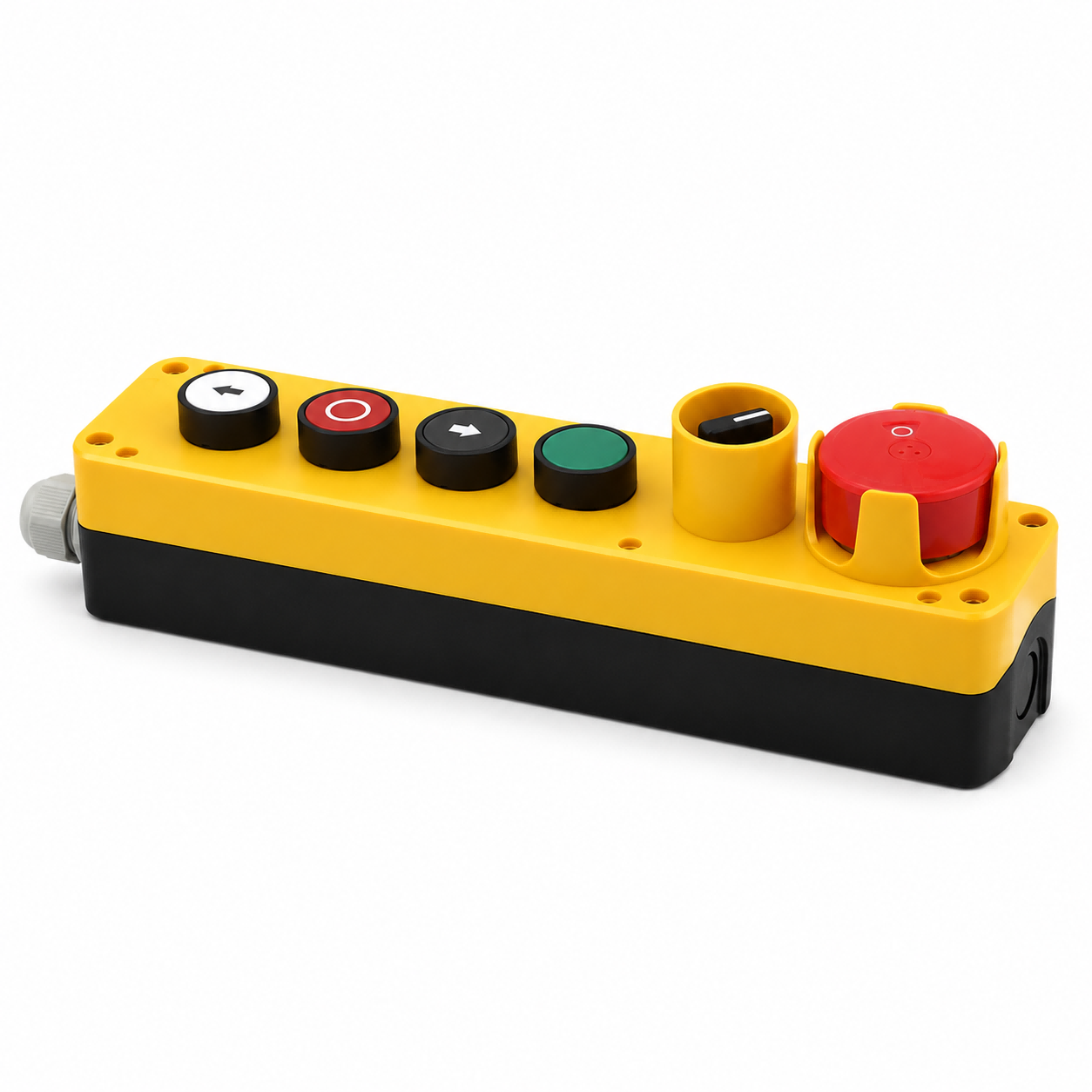

XDL75-JB625P 6 hole control box 5.png

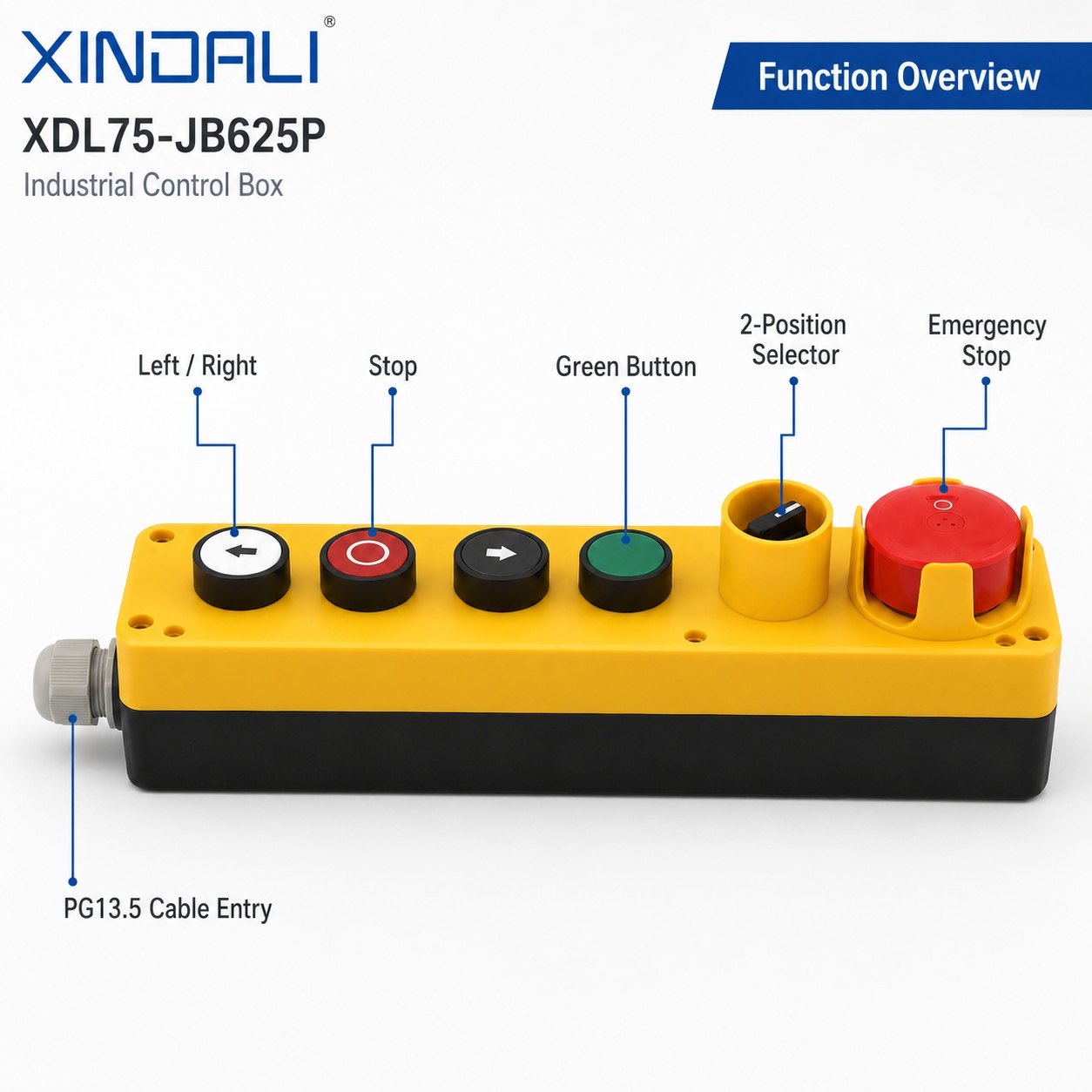

XDL75-JB625P 6 hole control box (3).jpg

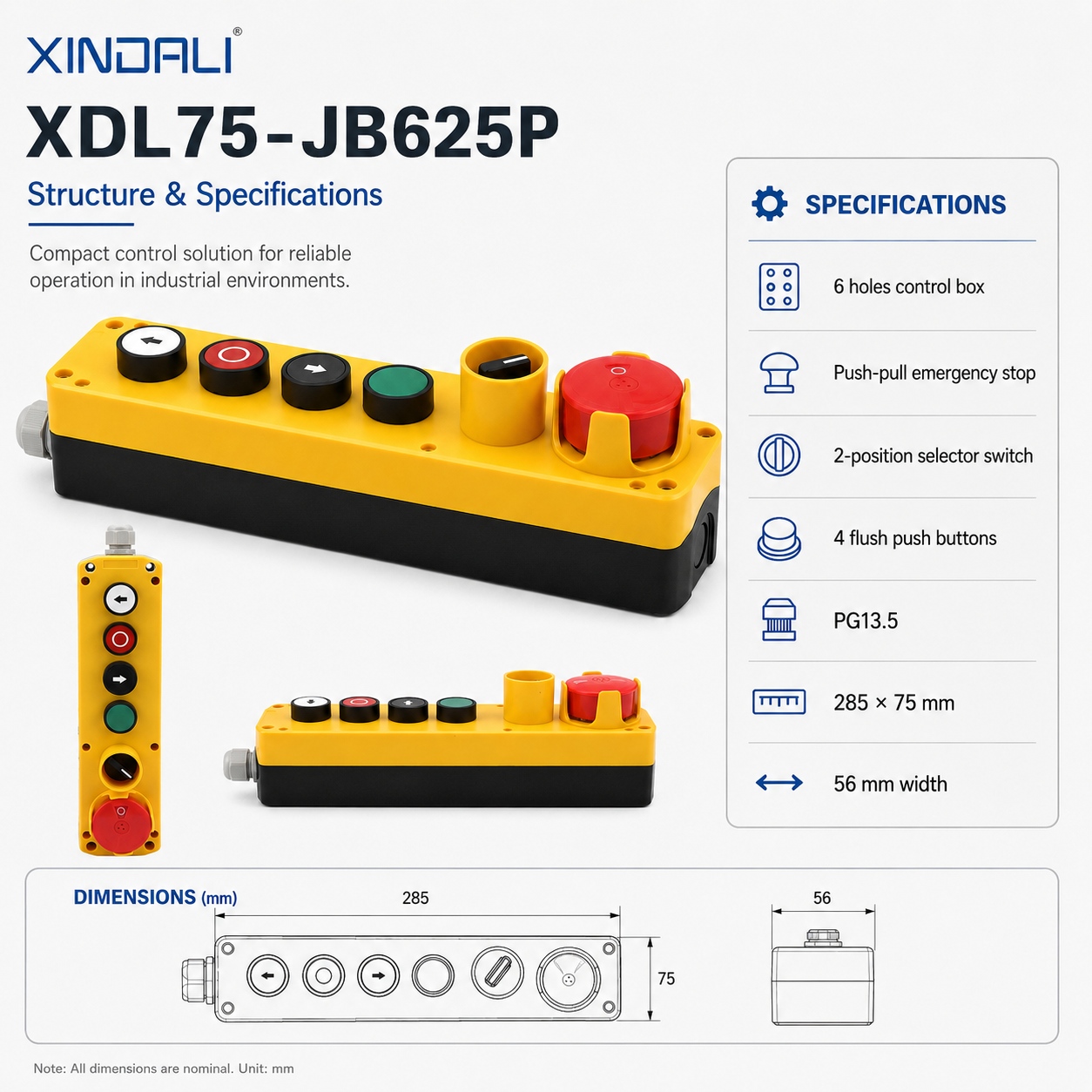

XDL75-JB625P 6 hole control box (4).jpg
XDL75-JB625P 6 hole control box (2).jpg
XDL75-JB625P 6 hole control box (1).jpg

XDL75-JB625P 6-Hole Emergency Stop Selector Push Button Control Box | XINDALI

XDL75-JB625P from XINDALI XDL75 Series is a 6-hole industrial control box with push-pull emergency stop, 2-position selector switch, 4 spring-return push buttons, PG13.5 cable entry, and 285 × 75 mm housing.

  • Product Model XDL75-JB625P
  • Product Type Emergency Stop, Selector and Multi Push Button Control Box
  • Control Box Structure 6 Hole Control Box
  • Emergency Stop Type Push-Pull, with Window Indication
  • Selector Switch Type 2-Position Stay Put
  • Push Button Type 4 Flush Push Buttons, Spring Return
  • Contact Layout N/C, N/O+N/C, N/O, N/O, N/C, N/O
  • Cable Entry PG13.5
  • Overall Size 285 × 75 mm
  • Body Width 56 mm
Contact us
Product Detail

XINDALI | XDL75 Series

XDL75-JB625P 6-Hole Emergency Stop, Selector and Multi Push Button Control Box

Advanced 6-hole industrial control box with 1 push-pull emergency stop button, 1 two-position selector switch, and 4 flush spring-return push buttons, designed for complex machine operation, automation panels, and multi-command control stations.
6 Hole Control Box Push-Pull E-Stop 2-Position Selector 4 Flush Push Buttons PG13.5 Cable Entry

Product Overview

The XDL75-JB625P is a multi-function industrial push button control box from the XDL75 Series. It integrates emergency stop, maintained selector control, and four momentary command buttons into one long operator station, making it suitable for equipment that requires multiple operating functions from a single control interface.

This model includes 1 emergency stop push-pull button with window indication, 1 selector switch with 2-position stay-put operation, and 4 flush spring-return push buttons. With a PG13.5 cable entry and a 285 × 75 mm long housing structure, the XDL75-JB625P is ideal for machinery, automation equipment, production lines, and OEM control box assemblies.

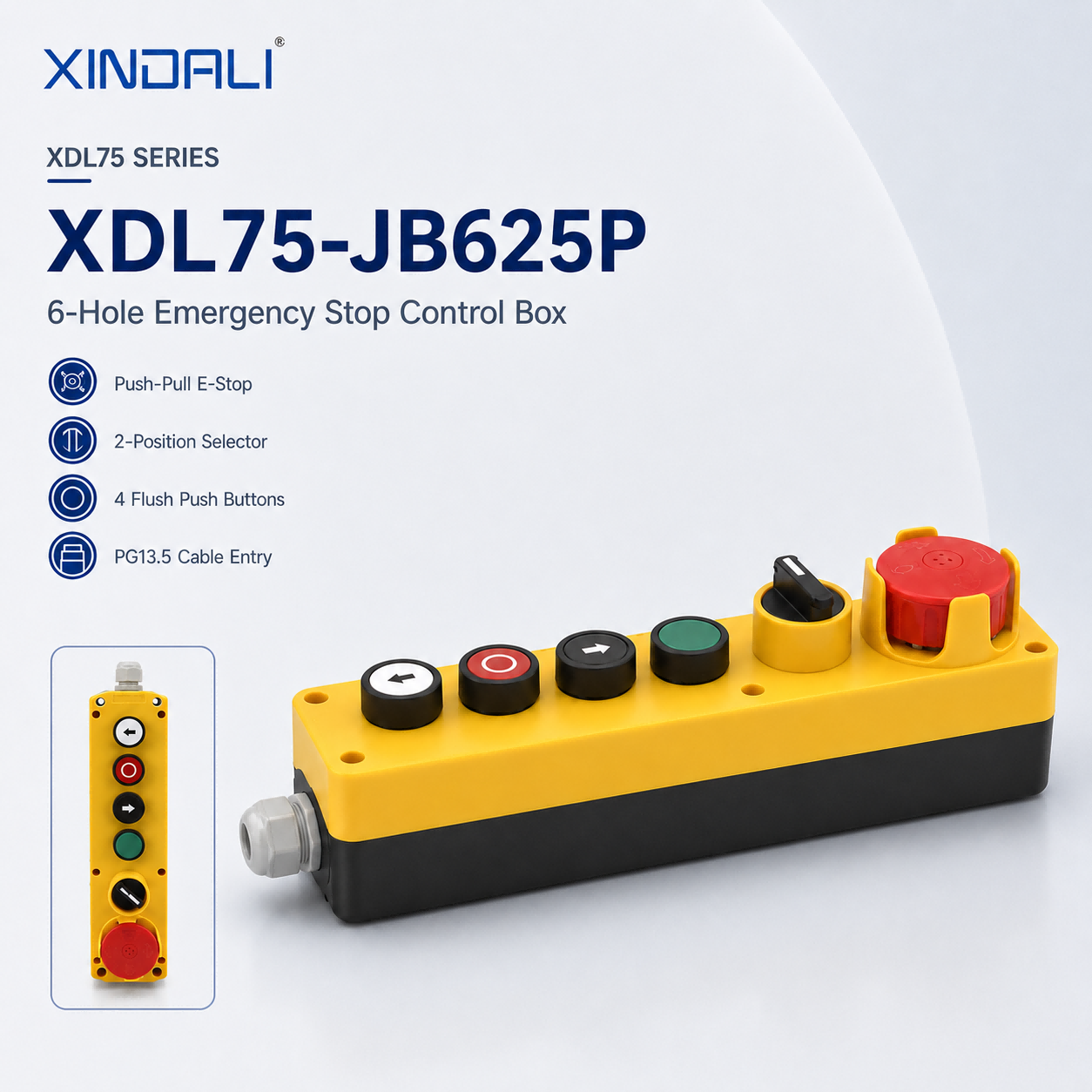

XDL75-JB625P emergency stop control box.png

Key Features

6-Hole Multi-Function Layout
Combines emergency stop, selector switching, and four push button commands in one integrated operator station.
Push-Pull Emergency Stop
The emergency stop button features push-pull operation with window indication for quick status recognition.
2-Position Stay-Put Selector
Maintained selector switch is suitable for mode selection, function switching, or operating state control.
4 Spring-Return Push Buttons
Four flush buttons provide momentary control inputs for start, stop, direction, reset, or auxiliary commands.
Flexible Contact Layout
Configured with N/C, N/O+N/C, N/O, N/O, N/C, and N/O contact functions for complex wiring logic.
Long Linear Control Housing
The 285 × 75 mm enclosure provides clear button spacing and a practical layout for machine-side installation.

Technical Specifications

Product Model XDL75-JB625P
Series XDL75 Series
Product Type Emergency Stop, Selector and Multi Push Button Control Box
Control Box Structure 6 Hole Control Box
Emergency Stop Type Push-Pull, with Window Indication
Selector Switch Type 2-Position Stay Put
Push Button Type 4 Flush Push Buttons, Spring Return
Contact Layout N/C, N/O+N/C, N/O, N/O, N/C, N/O
Cable Entry PG13.5
Overall Size 285 × 75 mm
Body Width 56 mm

Applications

The XDL75-JB625P is suitable for equipment that requires complex operator control, mode selection, and multiple command inputs:

• Industrial machinery
• Automation control panels
• Production line operation stations
• Conveyor and handling systems
• Multi-command equipment interfaces
• Machine mode selection panels
• OEM control box assemblies
• Customized industrial control systems

People Also Ask

Common buyer questions about 6-hole industrial control boxes with emergency stop, selector switch, and push buttons.

What is a 6-hole industrial control box used for?

A 6-hole industrial control box is used when equipment requires several operator functions in one station, such as emergency stop, mode selection, and multiple push button commands. It is suitable for machinery, automation panels, and customized control systems.

What components are included in the XDL75-JB625P?

The XDL75-JB625P includes one push-pull emergency stop button with window indication, one 2-position stay-put selector switch, and four flush spring-return push buttons.

What does push-pull emergency stop mean?

A push-pull emergency stop is pressed to stop the equipment and pulled to reset. This structure is easy to understand and commonly used in industrial machine safety control applications.

What is a 2-position stay-put selector switch?

A 2-position stay-put selector switch remains in the selected position until the operator manually changes it. It is commonly used for mode selection, function switching, or control state selection.

How many momentary push buttons does the XDL75-JB625P have?

The XDL75-JB625P has four flush push buttons with spring-return operation. These buttons can be used for momentary commands such as start, stop, direction, reset, or auxiliary functions depending on the circuit design.

Can the XDL75-JB625P be customized?

Yes. XINDALI can support customized layouts, button combinations, labeling, wiring requirements, and OEM control box assemblies based on project needs.

What applications is this control box best suited for?

This control box is best suited for industrial machinery, production equipment, automation systems, and operator panels that require emergency stop, maintained selection, and multiple momentary command functions.
