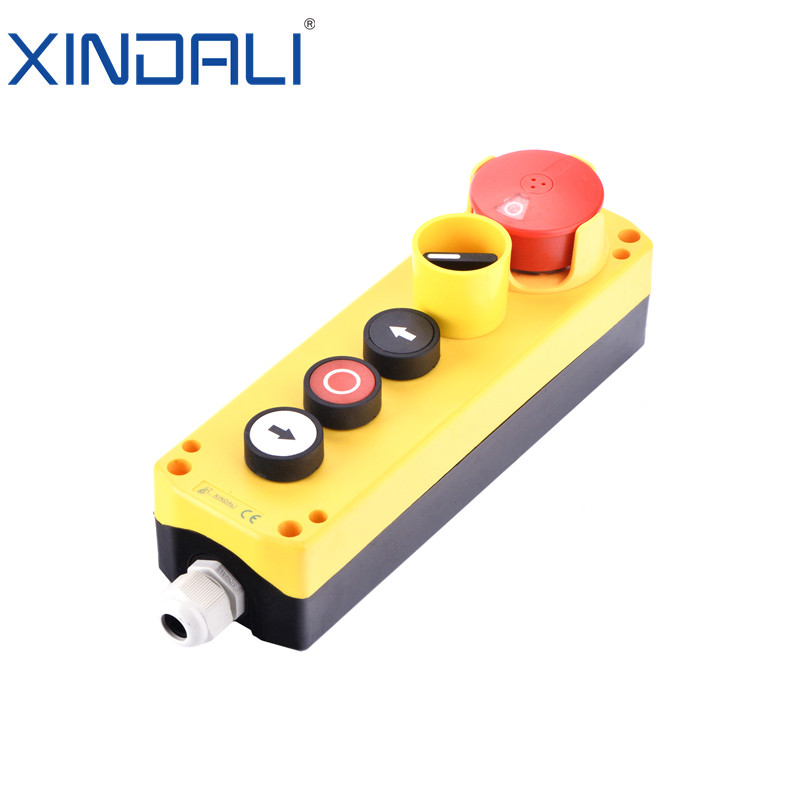

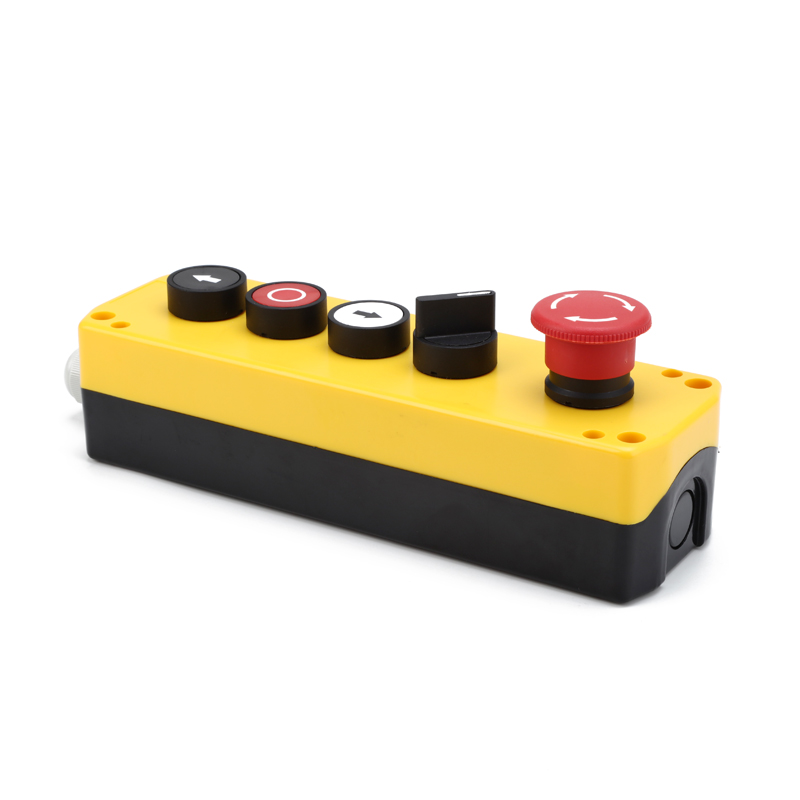

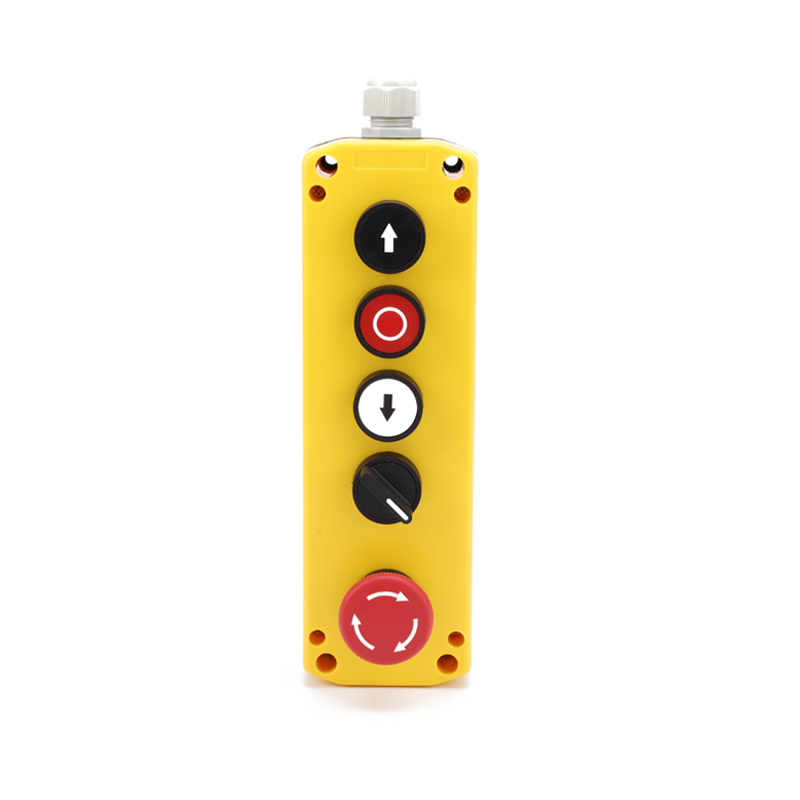

XDL75-JB525P Emergency Stop Selector Push Button Control Box | XINDALI

XDL75-JB525P from XINDALI XDL75 Series is a 5-hole control box with push-pull emergency stop, 2-position selector switch, 3 flush spring-return push buttons, and PG13.5 cable entry for industrial control applications.

  • Product Model XDL75-JB525P
  • Product Type Emergency Stop, Selector and Multi Push Button Control Box
  • Control Box Structure 5 Hole Control Box
  • Emergency Stop Type Push-Pull, with Window Indication
  • Selector Switch Type 2-Position Stay Put
  • Push Button Type 3 Flush Push Buttons, Spring Return
  • Contact Layout N/C, N/O+N/C, N/O, N/C, N/O
  • Cable Entry PG13.5
  • Overall Size 239 × 75 mm
  • Body Width 56 mm
Contact us
Product Detail

XINDALI | XDL75 Series

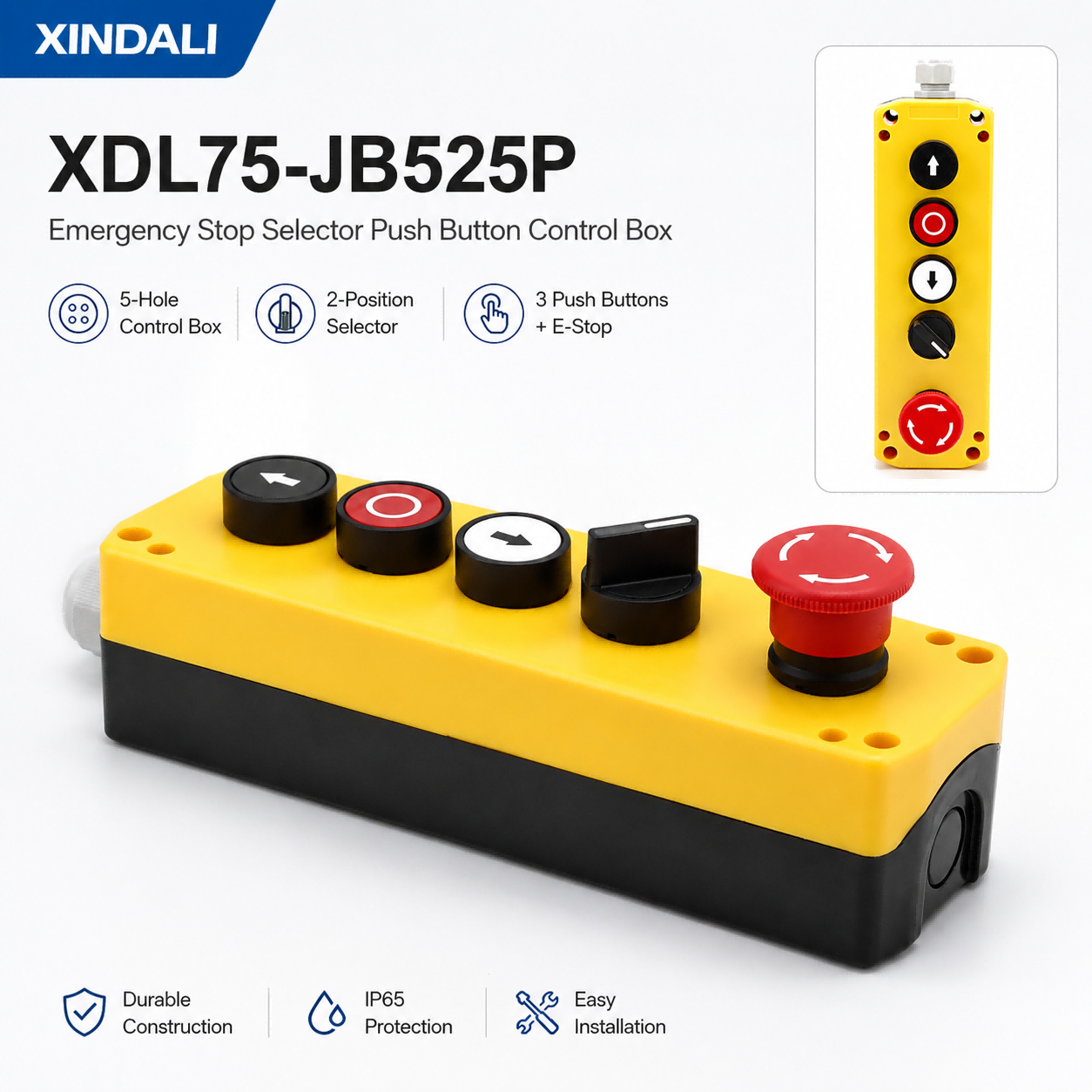

XDL75-JB525P Emergency Stop, Selector and Multi Push Button Control Box

Advanced 5-hole control box with 1 emergency stop push-pull button, 1 two-position selector switch, and 3 flush spring-return push buttons, designed for industrial machinery, automation panels, and multi-function operator control systems.
5 Hole Control Box Push-Pull E-Stop 2-Position Selector 3 Flush Push Buttons PG13.5 Cable Entry

Product Overview

The XDL75-JB525P is a high-function integrated industrial control box from the XDL75 Series. It combines emergency stop, selector switching, and multiple push button control functions into one elongated enclosure, making it suitable for equipment that requires more complex operator input.

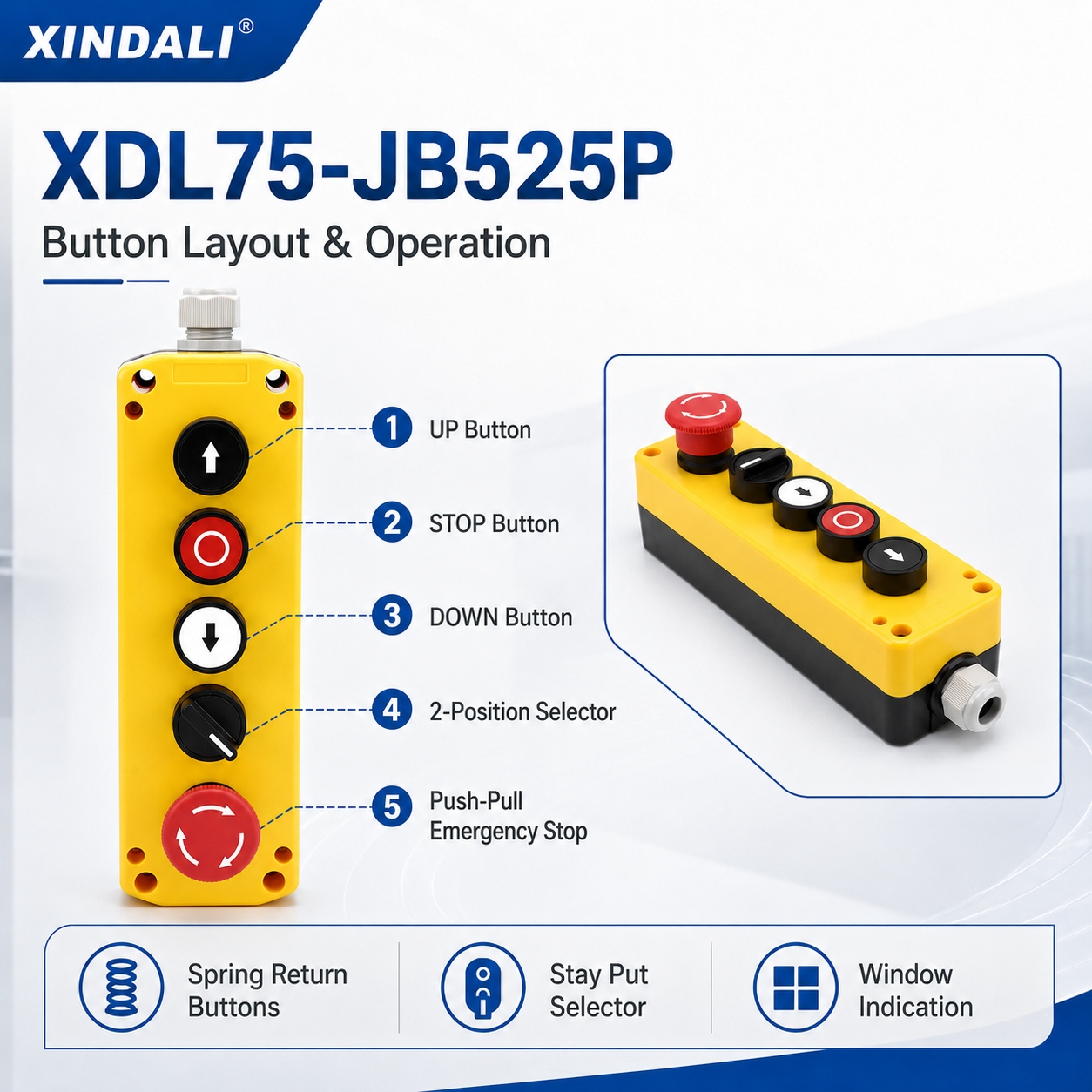

This model includes 1 emergency stop push-pull button with window indication, 1 selector switch with 2-position stay-put operation, and 3 flush spring-return push buttons. Its contact arrangement and compact linear housing make it a practical solution for industrial machinery, automation systems, and customized control stations.

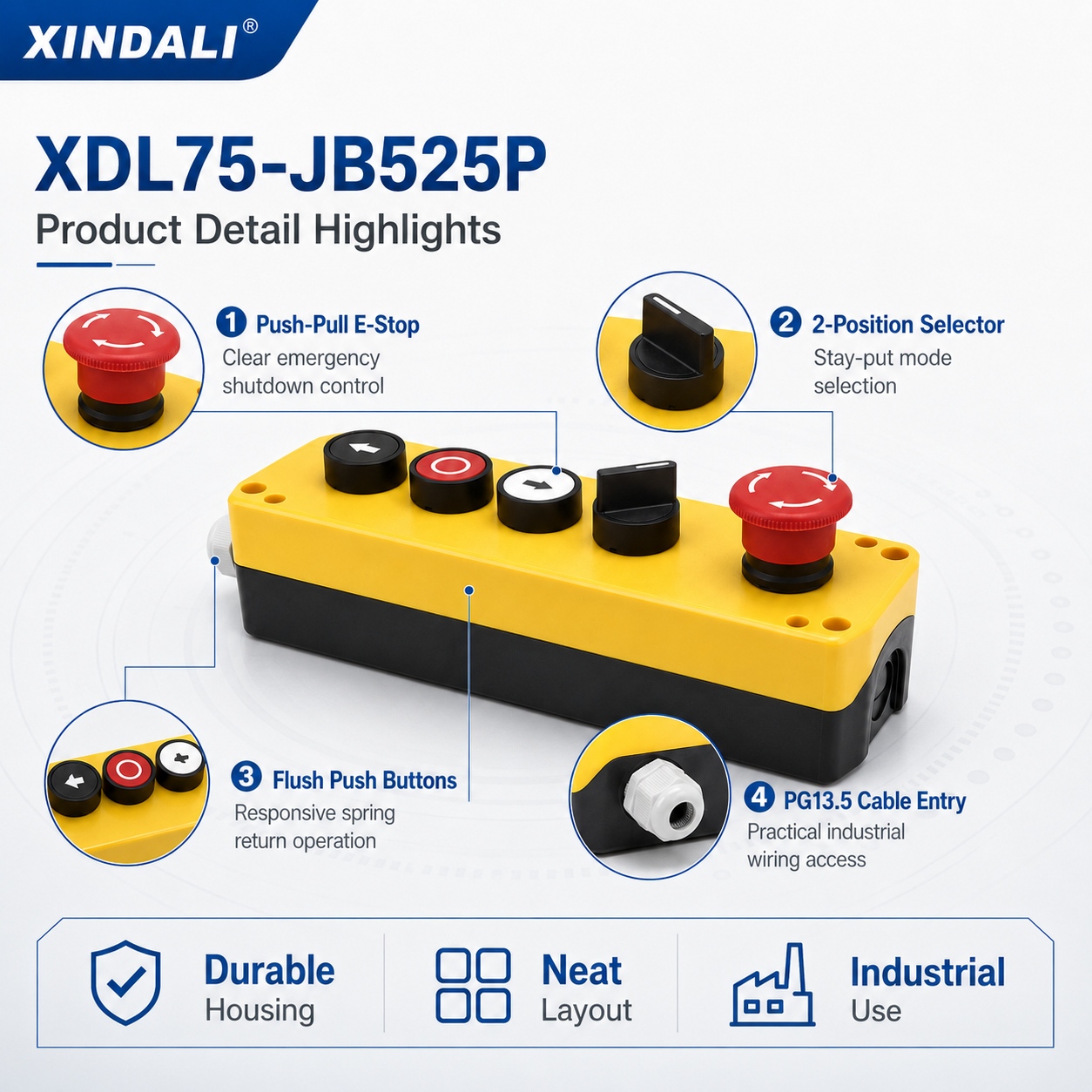

Key Features

Integrated 5-Hole Layout
Combines emergency stop, selector, and multiple push buttons in one station for multi-function machine control.
Push-Pull Emergency Stop
Emergency stop button adopts push-pull operation with window indication for clearer status recognition.
2-Position Selector Switch
Stay-put selector switch is suitable for maintained mode selection and functional switching.
3 Spring-Return Push Buttons
Three flush buttons support momentary operation for command, directional, or auxiliary functions.
Flexible Contact Arrangement
Configured as N/C, N/O+N/C, N/O, N/C, and N/O for varied industrial wiring logic.
Long Linear Housing
239 × 75 mm body helps organize multiple operator functions in a clean and accessible layout.

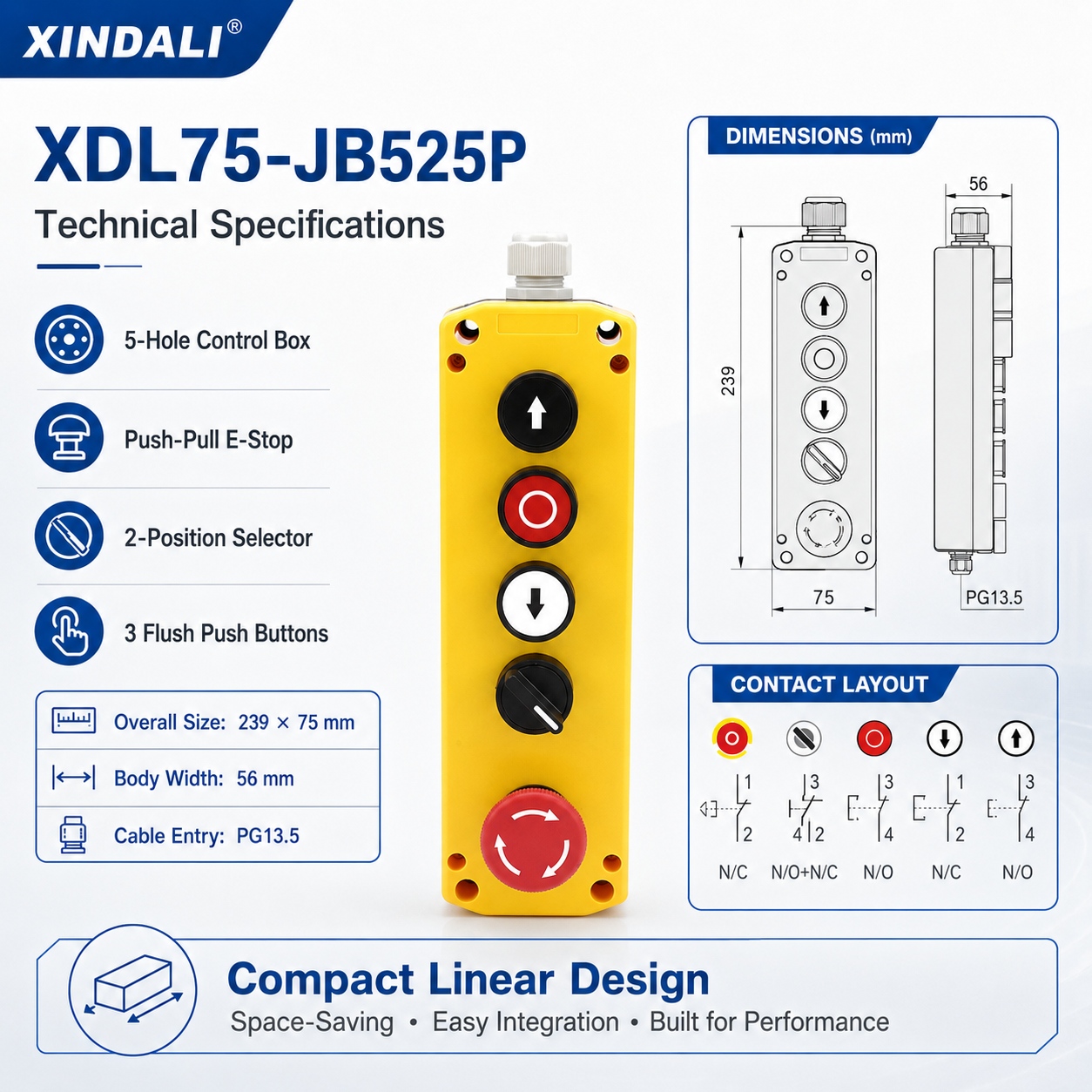

Technical Specifications

Product Model XDL75-JB525P
Series XDL75 Series
Product Type Emergency Stop, Selector and Multi Push Button Control Box
Control Box Structure 5 Hole Control Box
Emergency Stop Type Push-Pull, with Window Indication
Selector Switch Type 2-Position Stay Put
Push Button Type 3 Flush Push Buttons, Spring Return
Contact Layout N/C, N/O+N/C, N/O, N/C, N/O
Cable Entry PG13.5
Overall Size 239 × 75 mm
Body Width 56 mm

Applications

The XDL75-JB525P is suitable for industrial control systems that require multiple commands and maintained mode selection, including:

• Industrial machinery
• Automation control panels
• Equipment operator stations
• Conveyor and handling systems
• Multi-step control interfaces
• Machine function selection panels
• OEM control assemblies
• Customized industrial solutions

Why Choose XINDALI

Factory Direct Supply
Direct manufacturer support for industrial control boxes and operator stations.
Complex Function Integration
Suitable for equipment requiring emergency stop, selection, and multi-button command logic in one enclosure.
OEM / ODM Support
Custom layout, structure, labeling, and assembly support for industrial projects.
Practical Industrial Design
Long housing structure provides a clear and efficient operator interface for real-world machine control.

People Also Ask

Common buyer questions about 5-hole industrial control boxes with emergency stop and selector switches.

What is a 5-hole control box used for?

A 5-hole control box is used when a machine requires several operator functions in one station, such as emergency stop, selector switching, and multiple push button commands. It is commonly used in industrial machinery and automation panels.

What type of emergency stop does the XDL75-JB525P use?

The XDL75-JB525P uses a push-pull emergency stop button with window indication, which helps improve visibility and operating recognition.

What does a 2-position stay-put selector switch mean?

A 2-position stay-put selector switch remains in the selected position until it is manually changed. This type of switch is commonly used for maintained mode selection or functional switching in industrial systems.

How many push buttons are included in the XDL75-JB525P?

The XDL75-JB525P includes three flush push buttons with spring-return operation, in addition to one emergency stop and one selector switch.

What does the contact layout N/C, N/O+N/C, N/O, N/C, N/O mean?

This layout means the different operators in the box provide different contact functions, including normally closed, combined normally open and normally closed, and normally open contacts. This supports more flexible industrial wiring logic.

Can the XDL75-JB525P be customized for OEM projects?

Yes. XINDALI can support OEM and customized projects based on required hole layout, operator combination, labeling, structure, and application matching.

What applications is the XDL75-JB525P suitable for?

The XDL75-JB525P is suitable for industrial machinery, automation control stations, and equipment operator panels that need emergency stop, mode selection, and multiple command inputs in one control box.
