XDL75-JB702P 7-Hole Emergency Stop Selector Push Button Control Box | XINDALI

XDL75-JB702P from XINDALI XDL75 Series is a 7-hole industrial control box with push-pull emergency stop, 2-position selector switch, 5 spring-return push buttons, PG13.5 cable entry, and 331 × 75 mm housing.

  • Product Model XDL75-JB702P
  • Product Type Emergency Stop, Selector and Multi Push Button Control Box
  • Control Box Structure 7 Hole Control Box
  • Emergency Stop Type Push-Pull, with Window Indication
  • Selector Switch Type 2-Position Stay Put
  • Push Button Type 5 Flush Push Buttons, Spring Return
  • Contact Layout N/C, N/O+N/C, N/O, N/O, N/C, N/O
  • Cable Entry PG13.5
  • Overall Size 331 × 75 mm
  • Body Width 56 mm
Contact us
Product Detail

XINDALI | XDL75 Series

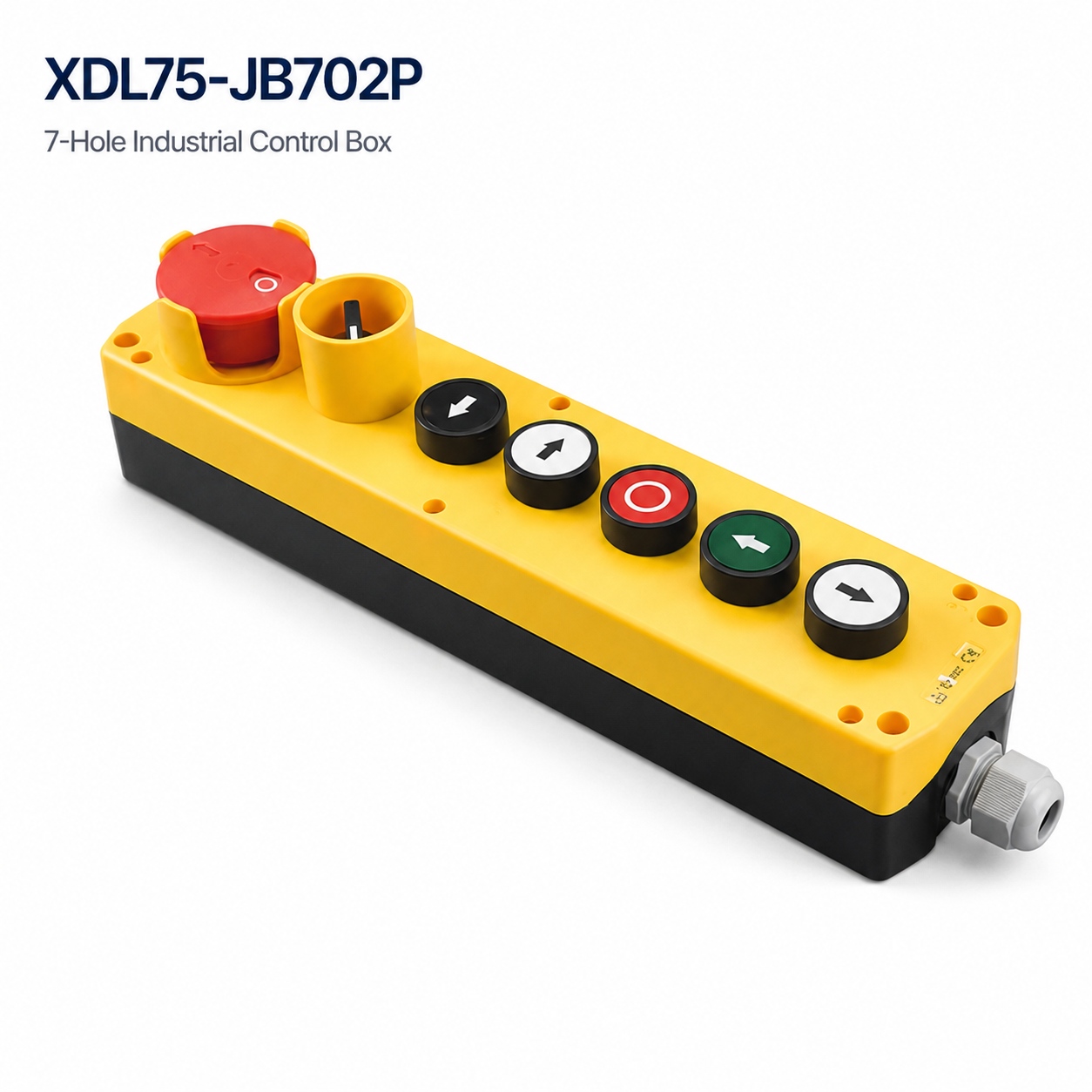

XDL75-JB702P 7-Hole Emergency Stop, Selector and Multi Push Button Control Box

The XDL75-JB702P is a 7-hole industrial control box designed for equipment that requires emergency stop, maintained mode selection, and multiple momentary push button commands in one integrated operator station.
7 Hole Control Box Push-Pull E-Stop 2-Position Selector 5 Flush Push Buttons PG13.5 Cable Entry

Product Overview

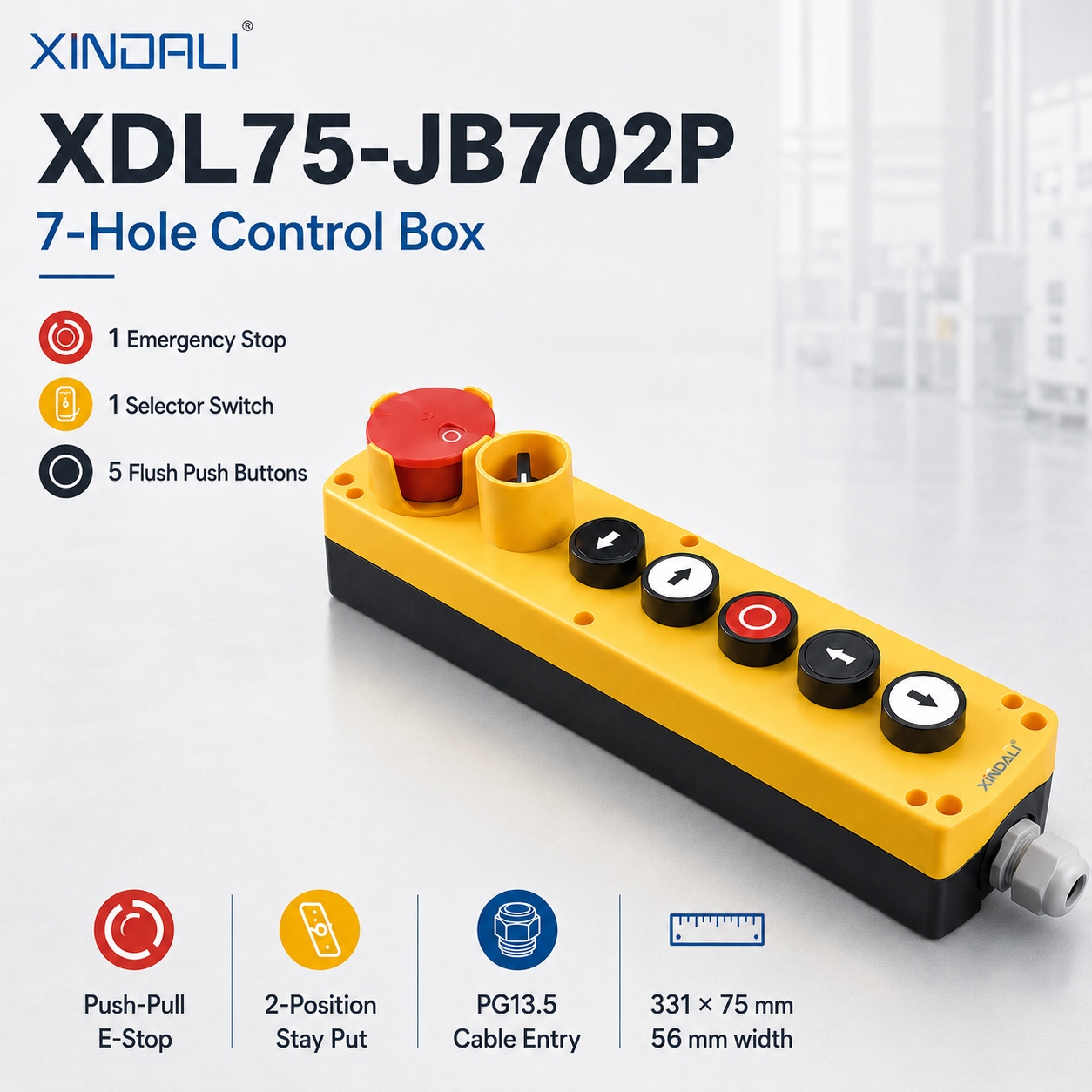

The XDL75-JB702P is a high-function industrial push button control box from the XDL75 Series. It integrates one emergency stop, one maintained selector switch, and five flush push buttons into a long linear enclosure, making it suitable for machines requiring multiple command inputs from one operator interface.

This model includes 1 emergency stop push-pull button with window indication, 1 selector switch with 2-position stay-put operation, and 5 flush spring-return push buttons. With a PG13.5 cable entry and 331 × 75 mm housing structure, it is suitable for industrial machinery, production equipment, automation control panels, and OEM control box assemblies.

Key Features

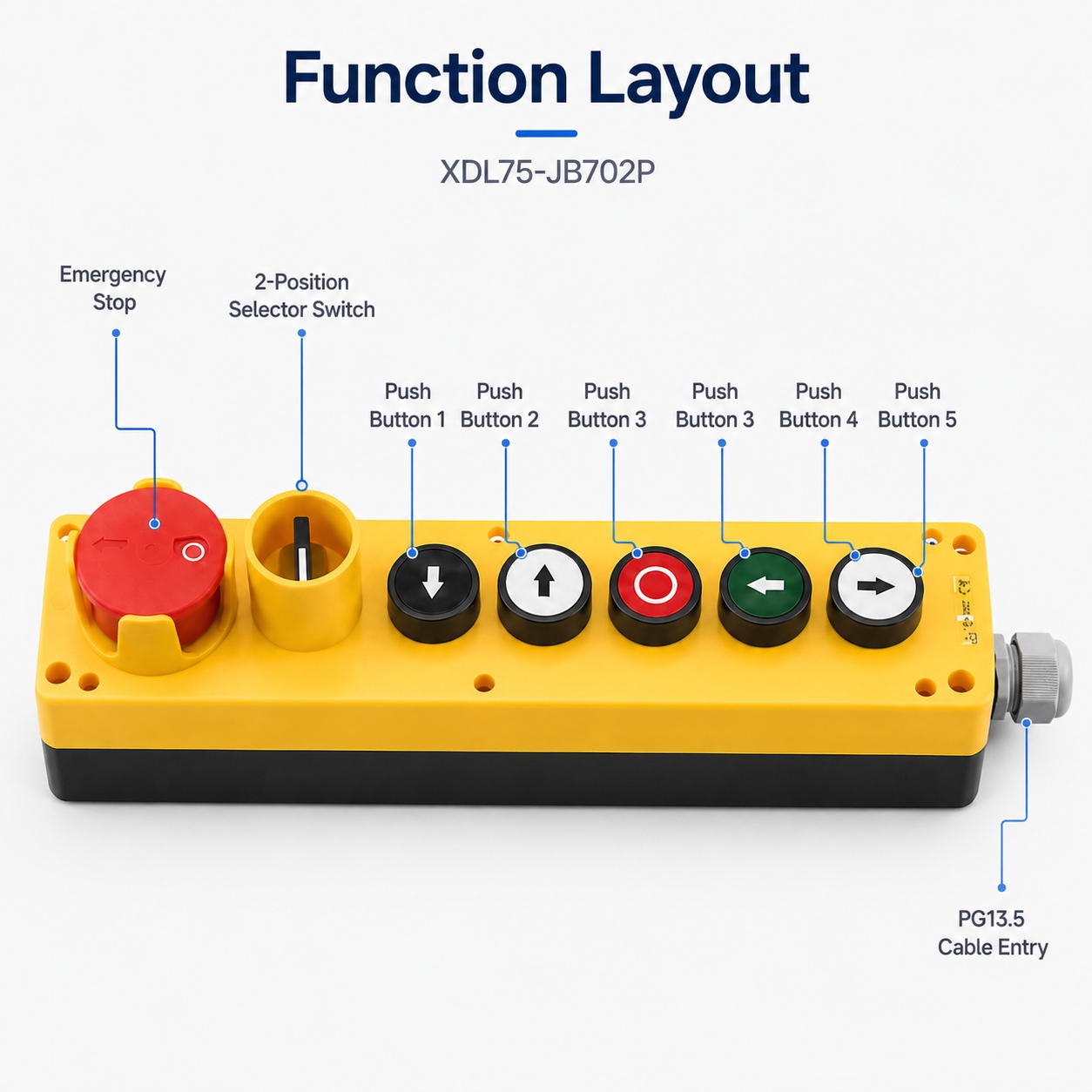

7-Hole Multi-Function Layout
Combines emergency stop, selector control, and five push button commands in one extended operator station.
Push-Pull Emergency Stop
Emergency stop button with push-pull operation and window indication helps operators quickly identify safety status.
2-Position Stay-Put Selector
Maintained selector switch is suitable for machine mode selection, functional switching, or operating state selection.
5 Spring-Return Push Buttons
Five flush push buttons provide momentary input for start, stop, direction, reset, auxiliary, or custom machine commands.
Flexible Contact Layout
Configured with N/C, N/O+N/C, N/O, N/O, N/C, N/O, and N/O contacts for complex industrial wiring logic.
Long Linear Control Housing
The 331 × 75 mm enclosure provides clear spacing and an organized layout for multi-command operation.

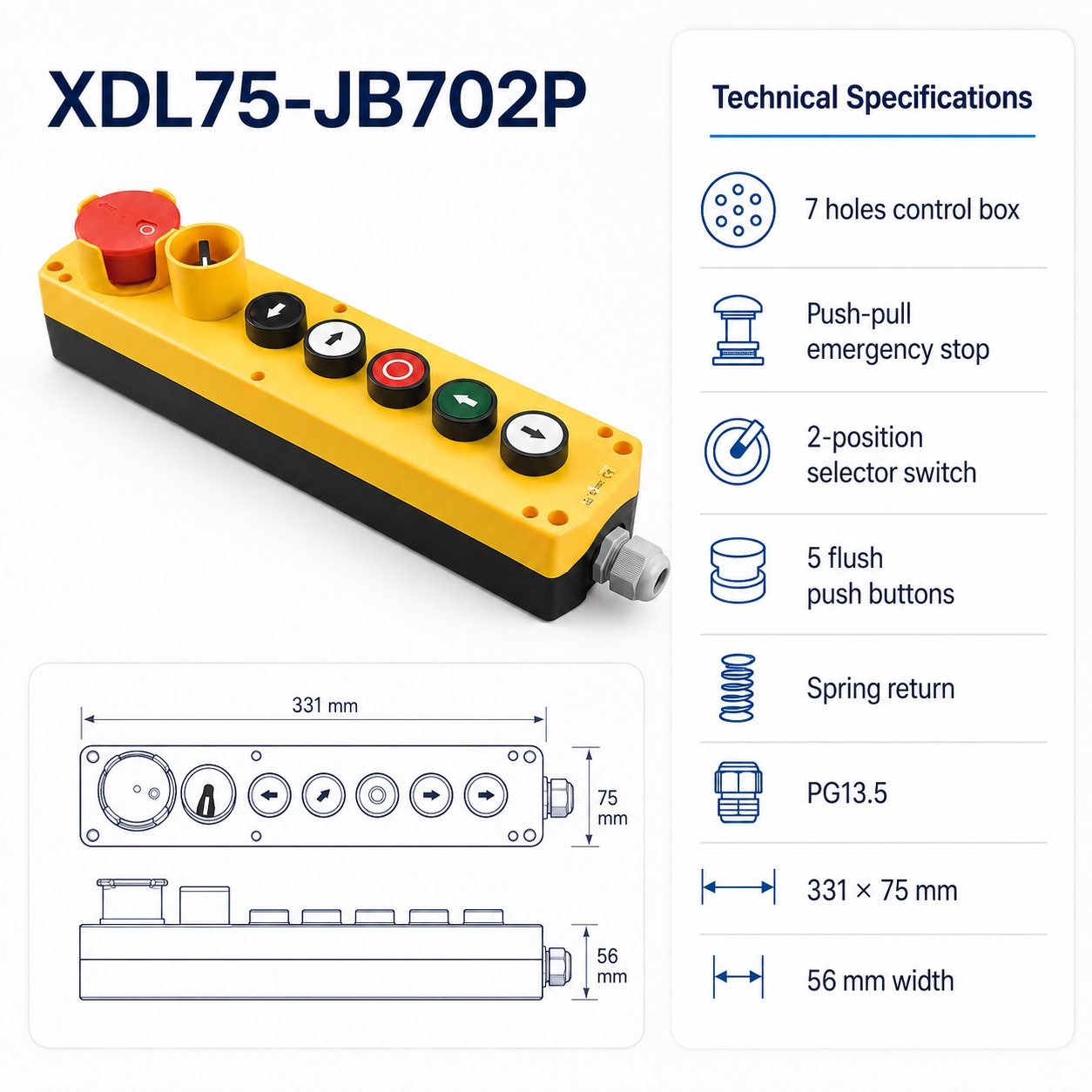

Technical Specifications

Product Model XDL75-JB702P
Series XDL75 Series
Product Type Emergency Stop, Selector and Multi Push Button Control Box
Control Box Structure 7 Hole Control Box
Emergency Stop Type Push-Pull, with Window Indication
Selector Switch Type 2-Position Stay Put
Push Button Type 5 Flush Push Buttons, Spring Return
Contact Layout N/C, N/O+N/C, N/O, N/O, N/C, N/O, N/O
Cable Entry PG13.5
Overall Size 331 × 75 mm
Body Width 56 mm

Applications

The XDL75-JB702P is suitable for industrial control applications requiring multiple command functions and a clear operator interface:

• Industrial machinery
• Automation control panels
• Production line control stations
• Conveyor and handling systems
• Multi-command equipment interfaces
• Machine mode selection panels
• OEM control box assemblies
• Customized industrial control systems

Why Choose XINDALI

Factory Direct Supply
Direct manufacturer support for industrial control boxes and push button stations.
Complex Function Integration
Suitable for applications requiring emergency stop, selector switching, and multiple command inputs.
OEM / ODM Support
Custom layout, labeling, wiring, cable entry, and assembly support are available for project needs.
Industrial Application Focus
Designed for real machine-side control and operator interface use in industrial environments.

People Also Ask

Common buyer questions about 7-hole industrial control boxes.

What is a 7-hole industrial control box used for?

A 7-hole industrial control box is used when equipment requires multiple operator functions in one station, such as emergency stop, selector switching, and five push button commands. It is commonly used in machinery and automation systems.

What components are included in the XDL75-JB702P?

The XDL75-JB702P includes one push-pull emergency stop with window indication, one 2-position stay-put selector switch, and five flush spring-return push buttons.

What does push-pull emergency stop mean?

A push-pull emergency stop is pressed to stop the equipment and pulled to reset. This design is simple to operate and widely used in industrial machine safety control applications.

What is a 2-position stay-put selector switch?

A 2-position stay-put selector switch remains in the selected position until the operator manually changes it. It is often used for mode selection or function switching.

How many momentary push buttons does this model have?

This model has five flush push buttons with spring-return operation. These buttons can be used for momentary commands such as start, stop, direction, reset, or auxiliary functions depending on the circuit design.

Can XDL75-JB702P be customized?

Yes. XINDALI can support customized button layouts, label designs, contact configurations, cable entry options, and OEM control box assemblies based on project requirements.

What applications is the XDL75-JB702P suitable for?

It is suitable for industrial machinery, production equipment, automation systems, and operator panels that require emergency stop, maintained selection, and multiple momentary command functions.

Explore More Solutions

Looking for more industrial control products? Browse our Push Button Control Station solutions or explore more XDL75 Series control boxes.

Need a Customized 7-Hole Control Box?

Contact XINDALI for quotation, technical details, and OEM support for your industrial control project.
