XDL85-90 Heavy Duty Mushroom Head Push Button Switch | IP65 Waterproof Industrial Control Station | Emergency Stop & Start
The XDL85-90 Heavy Duty Mushroom Control Switch is engineered for the toughest industrial environments. Featuring a robust IP65 waterproof and dustproof housing with IK08 impact resistance, this switch is designed to be operated by hand, foot, or palm—making it ideal for emergency stops and frequent-use control stations.
IP65 Waterproof
Fully sealed against dust and low-pressure water jets. Perfect for high-humidity or outdoor areas.
Impact Resistant
Built with high-strength ABS and PC materials. Rated IK08 to withstand heavy impacts from boots or tools.
High Durability
Rated for over 500,000 mechanical cycles and 100,000 electrical cycles for long-lasting performance.

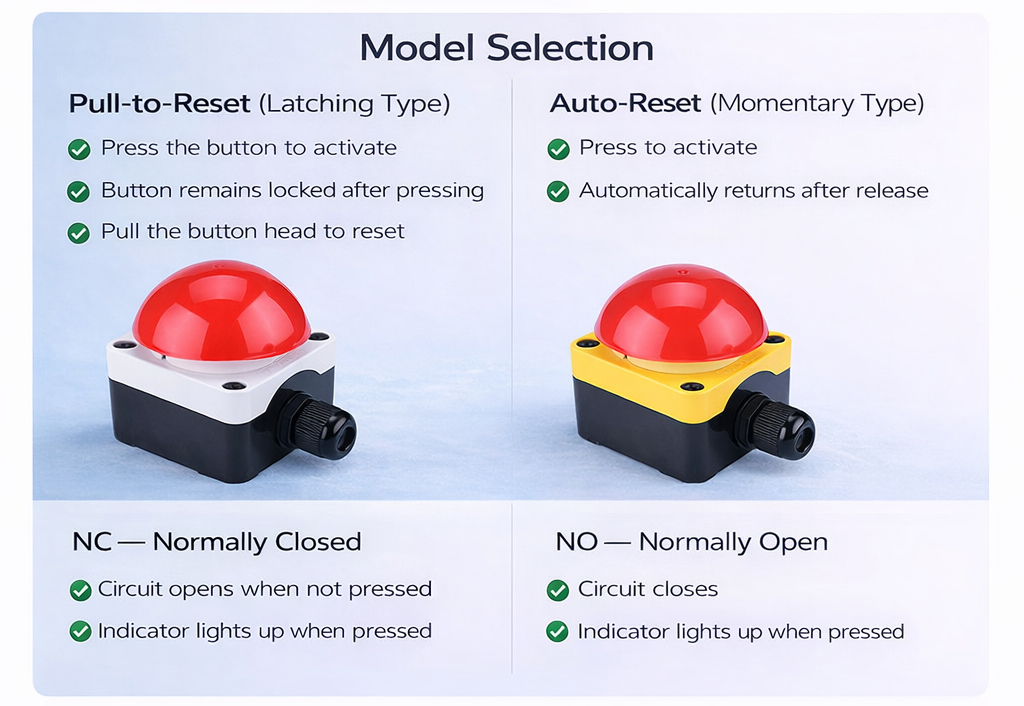

Operation Modes Available
Please select the correct operation type for your application:
🔄 Momentary (Spring Return)
Push & Hold to activate, Release to return.
Ideal for signal controls, start buttons, or doorbell-type applications. The button automatically springs back when you remove your hand.
🛑 Latching (Push-Pull / E-Stop)
Push to Lock (Stop), Pull to Reset.
Critical for Emergency Stop circuits. Once pressed, the button stays down to cut power. You must manually pull the mushroom head up to reset the circuit.
Technical Specifications
| Model | XDL85-90 |
|---|---|
| Material | ABS Base, Polypropylene/PC Button Head |
| Protection Rating | IP65 (Waterproof) / IK08 |
| Contact Configuration | NO (Normally Open) / NC (Normally Closed) |
| Rated Current / Voltage | AC-15 / DC-13 (Standard GB 14048.5) |
| Mechanical Life | ≥ 500,000 times |
| Electrical Life | ≥ 100,000 times |
| Operating Temperature | -25°C to +55°C |
| Cable Entry | PG13.5 Gland (Fits 0.5mm²~0.75mm² cable) |
| Dimensions | 85mm (L) x 85mm (W) x 98mm (H) |
| Certifications | CE, TUV, RoHS, UL |
Wiring & Installation
The switch comes with high-quality contact blocks offering low contact resistance (≤50mΩ).
- 🔴 Red Contact Block (NC - Normally Closed): Circuit is connected by default. Pushing the button breaks the circuit. (Common for Emergency Stops).
- 🟢 Green Contact Block (NO - Normally Open): Circuit is disconnected by default. Pushing the button connects the circuit. (Common for Start buttons).
Note: Features a standard PG13.5 waterproof cable gland for secure wiring.
Common Applications
Thanks to its large ergonomic head and rugged build, the XDL85-90 is widely used in:
- 🏭 Industrial Automation: Assembly lines and conveyor belts.
- ⚙️ CNC Machinery: Lathes, drills, and milling machines.
- 🏥 Medical Equipment: Patient assistance controls.
- 🛒 Commercial Facilities: Mall escalators and elevators.
- 🏗️ Heavy Industry: Mining machinery and rail transit systems.
Manufacturer Assurance: Produced by Xindali Industries, a leader in push-button switches since 1997. Certified quality you can trust.
