XDL85-JB381F Integrated Emergency Stop Control Box with Push Button and European Socket
XINDALI XDL85 Series | Safety + Command + Power Connection
XDL85-JB381F Integrated Emergency Stop Control Box with Push Button and European Socket
The XDL85-JB381F combines an emergency stop, one spring-return flush push button and one European-style socket in a compact three-position industrial control enclosure. It is designed for machine builders and system integrators that need local safety control, a momentary operating command and an auxiliary electrical connection point in one station.

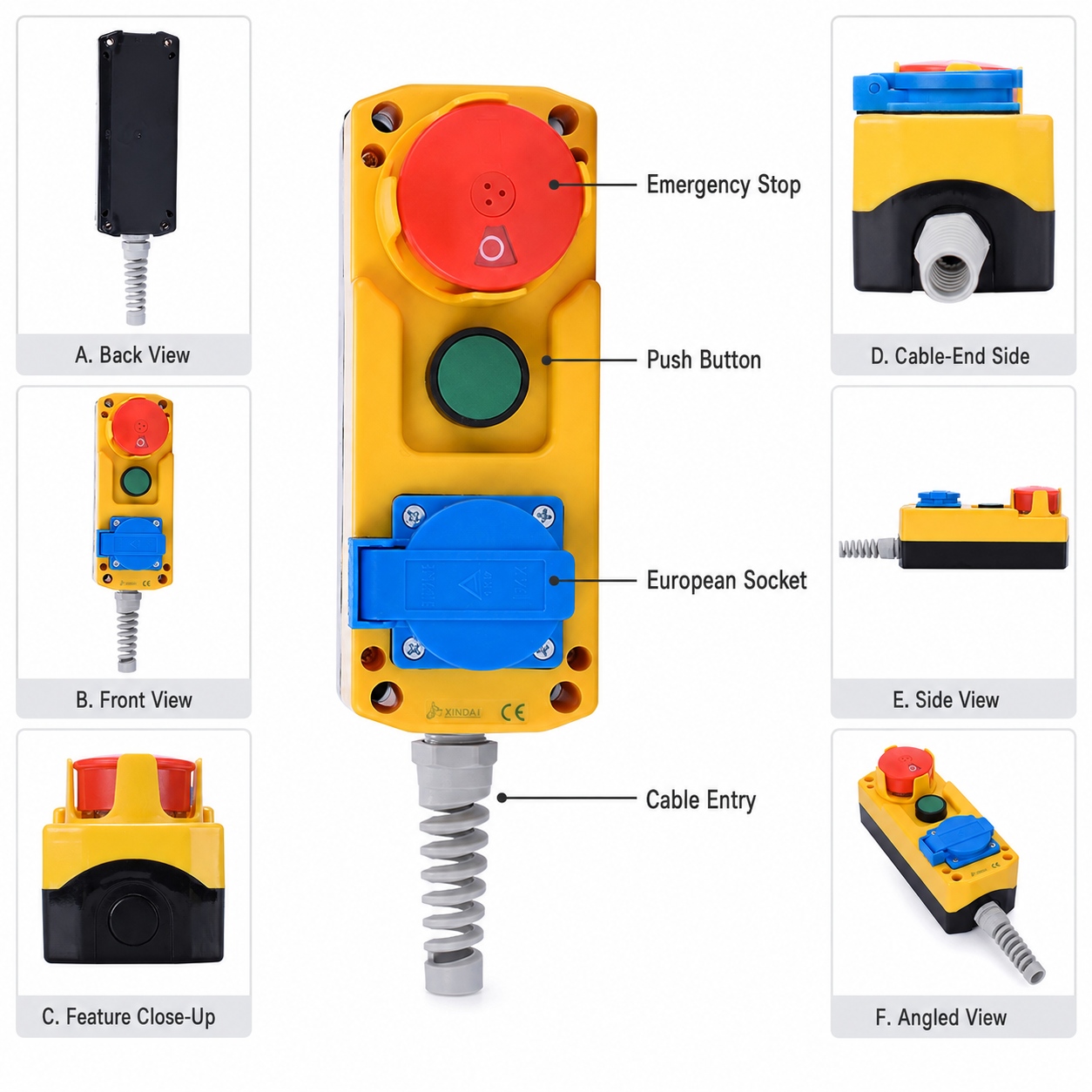

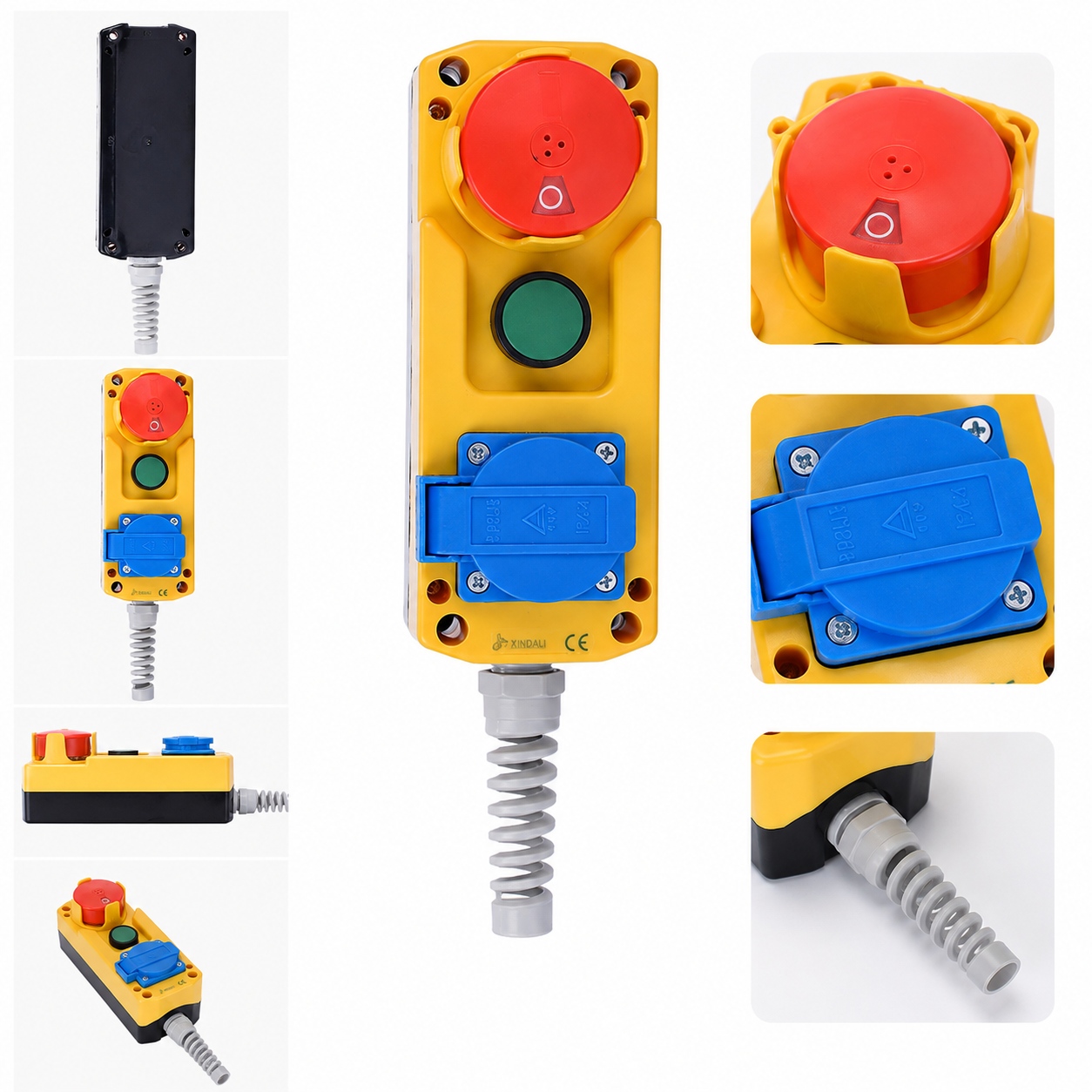

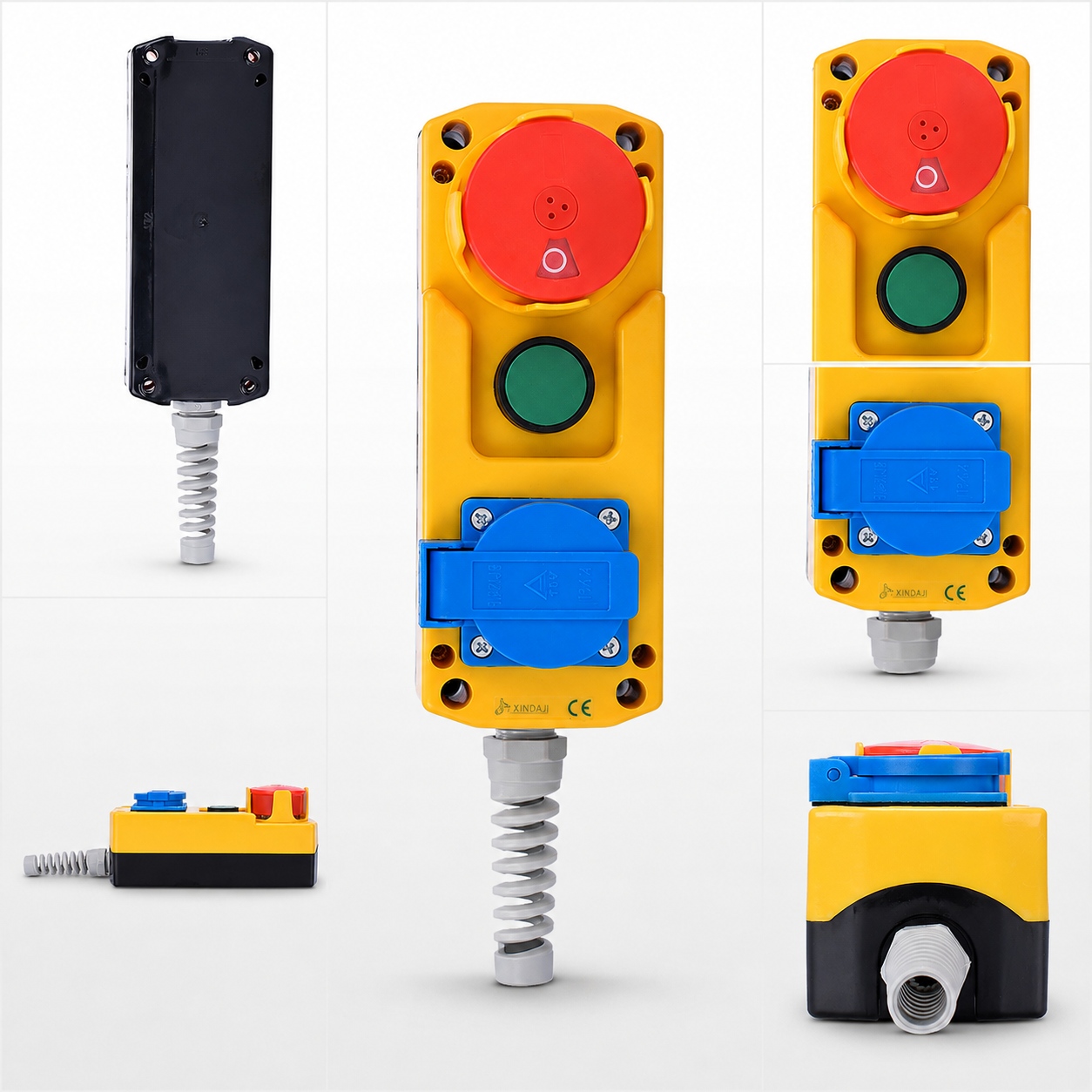

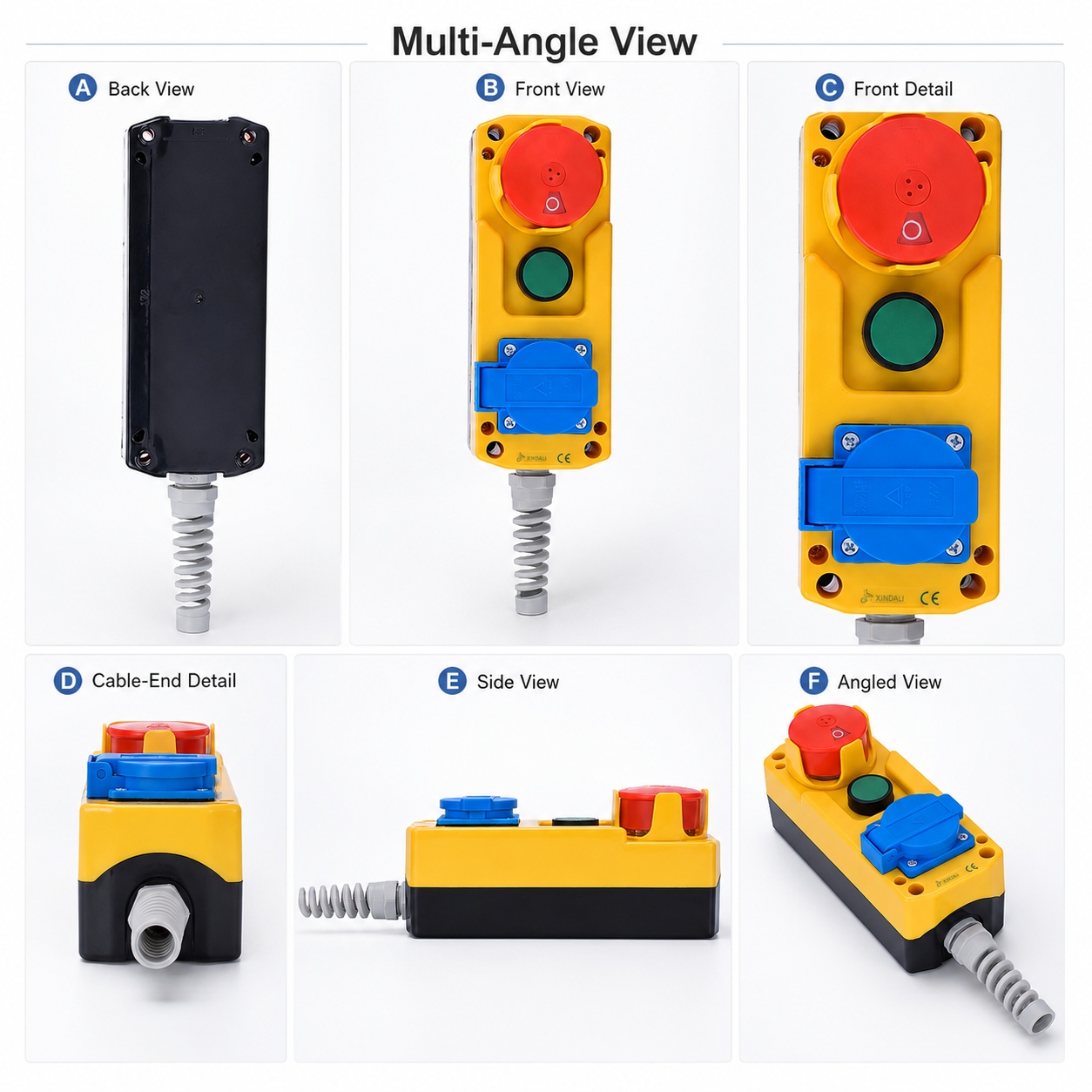

3-Position Control Box Push-Pull E-Stop Window Indication Momentary Push Button European Socket PG13.5 Cable Entry
One Station for Safety, Machine Command and Local Connection
Conventional machine installations may require separate enclosures for emergency stopping, local machine operation and an electrical socket.
The XDL85-JB381F integrates these functions into one compact control box, helping simplify the machine-side operating area and providing equipment builders with a practical platform for customized control assemblies.

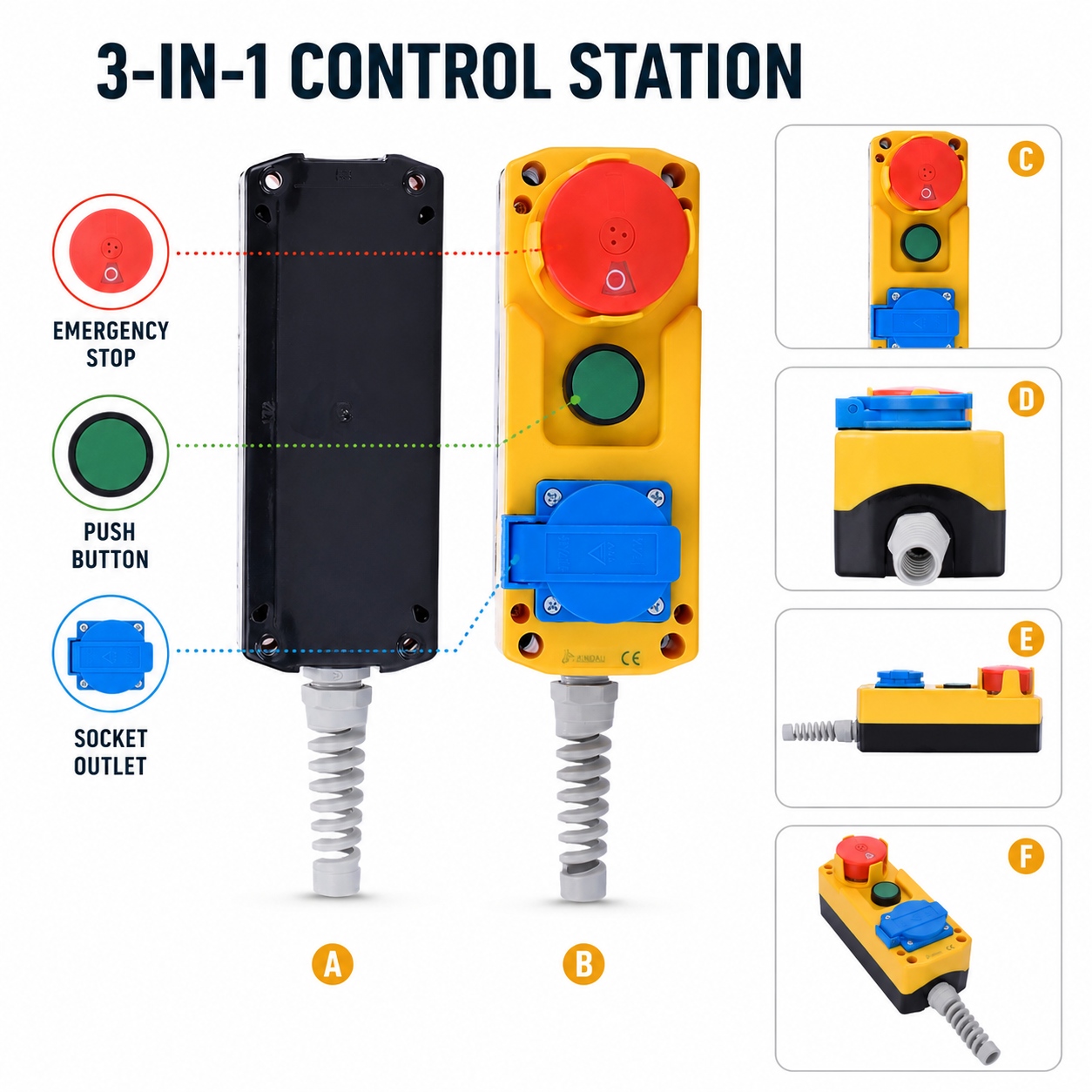

Three Integrated Functions
Emergency Stop
Push-pull mushroom operator with window indication and N/C contact.
Momentary Machine Command
Spring-return flush push button with N/O contact for a machine command.
European-Style Socket
Provides an integrated electrical connection point within the same control enclosure.
Why Integrate a Socket into a Machine Control Station?
Fewer Separate Boxes
Safety, command and connection functions can be consolidated into one enclosure.
Cleaner Machine Layout
The integrated arrangement can simplify the operator-side installation.
Local Service Access
The socket provides an additional connection point close to the machine operating location.
OEM Configuration
Button function, labeling, wiring and socket configuration can be matched to the equipment project.
A Practical Machine-Side Control Architecture
The three control positions can serve different roles within the equipment control system.
01 — Emergency Stop
Provides a local N/C emergency-stop contact for integration into the machine safety circuit.
02 — Machine Command
The spring-return button can be assigned to START, RESET, JOG, UP or another momentary command.
03 — Local Socket
The European-style socket provides a local electrical connection according to the project's wiring specification.
Typical Applications for XDL85-JB381F

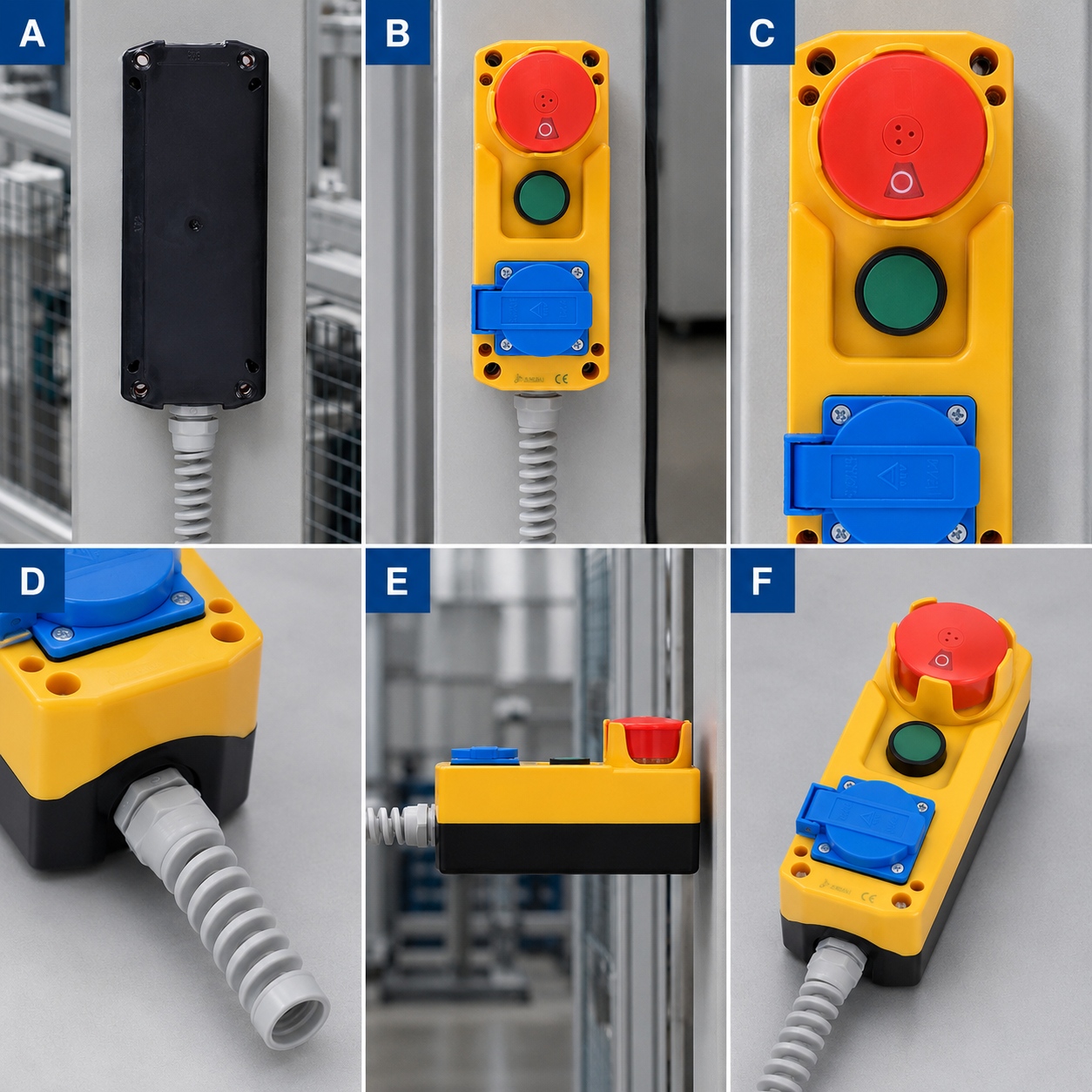

Industrial Machinery
Suitable for machine-side operating points requiring emergency stopping, one local command and a socket connection.
Hydraulic Equipment
The momentary button can be configured for hydraulic operation while the emergency stop provides local stop control.
Maintenance Stations
Combines local machine control and a convenient electrical connection point near the maintenance area.
Packaging Machinery
Suitable for compact machine panels where local stop, reset or jog control is required.
Automated Equipment
Can be integrated into equipment-side operating stations as part of a customized control system.
OEM Machine Projects
Suitable for equipment manufacturers requiring a customized combination of safety, control and connection functions.
Who Typically Buys This Type of Control Box?
Machine Builders & OEM Manufacturers
For integrating several machine-side functions into a compact standardized enclosure.
Automation System Integrators
For customized local control stations incorporated into automation projects.
Hydraulic Equipment Manufacturers
For hydraulic power packs, lifting systems and related industrial equipment.
Industrial Electrical Distributors
For customers looking for combined push-button, emergency-stop and socket control products.
Choosing the Right XDL85 Socket Control Box
| Configuration | Main Functions | Best For |
|---|---|---|
| XDL85-JB183F | European socket | Compact standalone connection point |
| XDL85-JB281F | Emergency stop + European socket | Safety stop and local connection |
| XDL85-JB381F | Emergency stop + momentary push button + European socket | Integrated safety, command and connection station |
Technical Specifications
| Model | XDL85-JB381F |
| Series | XDL85 Series |
| Control Positions | 3 holes |
| Emergency Stop | 1 push-pull emergency stop with window indication |
| Emergency Stop Contact | N/C |
| Push Button | 1 flush push button |
| Push Button Action | Spring return / momentary |
| Push Button Contact | N/O |
| Socket | 1 European-style socket |
| Cable Entry | PG13.5 |
| Approx. Front Size | 193 × 75 mm |
| Approx. Housing Depth | 56 mm |
| Approx. Maximum Side Depth | 65 mm |
| Socket Projection Shown in Drawing | Approx. 16 mm |
Socket voltage/current rating, final wiring arrangement and machine safety circuit should be confirmed according to the specific OEM project and electrical requirements.
OEM Control Station Configuration
XDL85-JB381F can serve as a platform for customized machine-side control assemblies. Depending on project requirements, customers can discuss:
Button Function & Label
START, RESET, JOG, UP or application-specific symbols.
Contact Configuration
Contact arrangement can be discussed according to the control circuit.
Wiring & Cable
Pre-wiring and cable requirements can be configured for OEM assembly.
Explore Related Industrial Control Solutions
Explore more industrial push button control stations for different button and enclosure configurations.
For portable machine operation, browse our handheld pendant controller range .
Need a different socket, button function or wiring configuration? Contact XINDALI for an OEM control box solution .
Need Safety, Machine Control and a Socket in One Compact Station?
Send XINDALI your emergency-stop circuit, push-button function, socket specification, wiring and cable requirements for an XDL85-JB381F quotation or OEM configuration.
Request a Quotation
