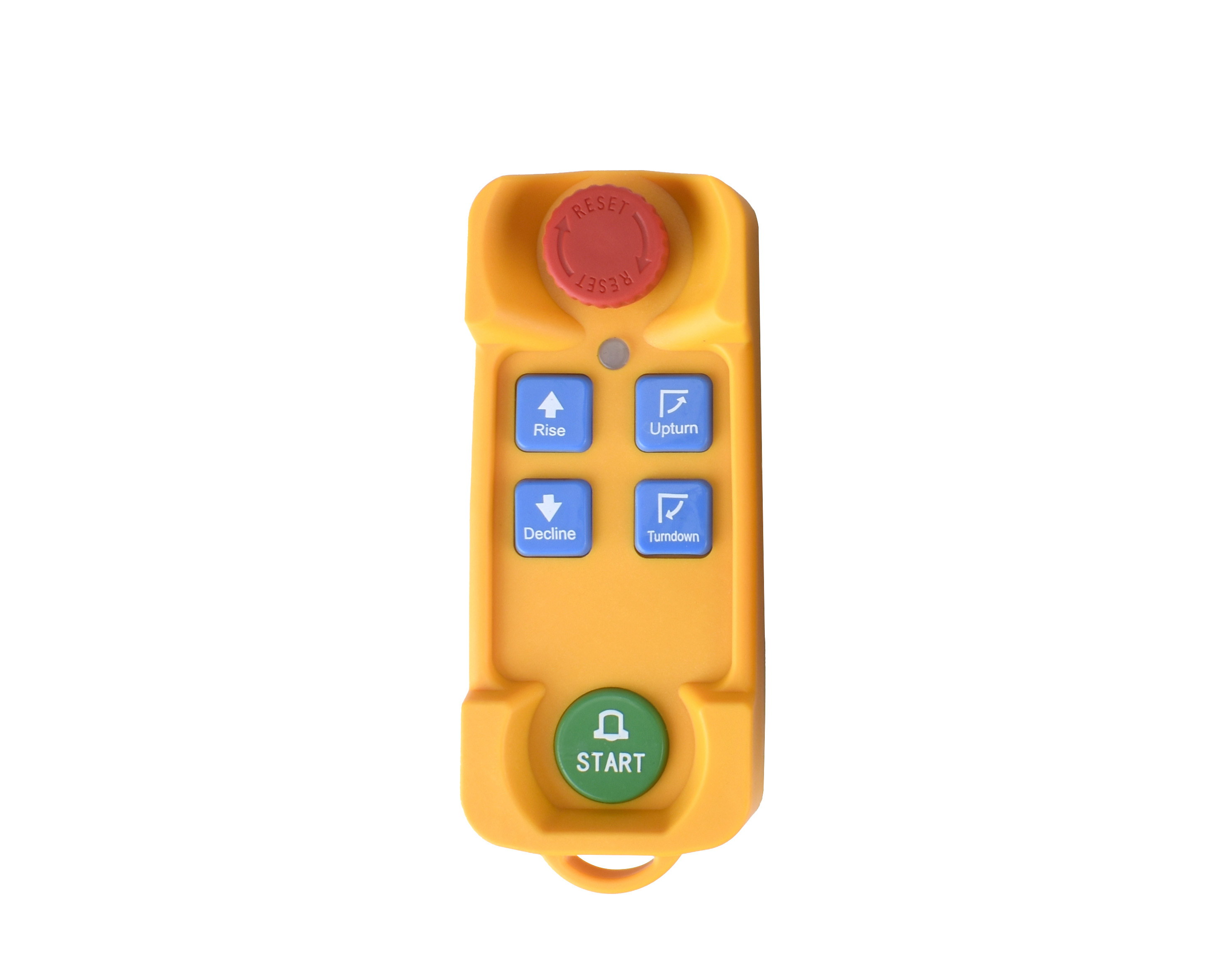

car push start button wireless push button car with remote push button XDL19-XCD-4

Model:
XDL19-XCD-4
MOQ:
240
Payment:
T/T L/C
Brand:
XINDALI
Delivery time:
One week
Start Port:
Shanghai/ningbo
Certification:
ISO9001 RoSH CE UL TUV
SKU:
Availability:

Product Description

Characteristic

XDL19 industrial wireless remote controller is small and unusual, with complete types. Its products have passed ISO9001, ROHS, CE and FCC certification. Its shell is beautiful, firm, light to hold, reasonable in structure and complete in functions; The battery supports Type-C interface charging, and the buttons have buzzer and LED light prompts (with emergency stop indication, charging indication, battery undervoltage indication, full charge indication, signal indication, and startup indication). The product transmission distance can reach 100 meters; The circuit is safe and reliable; The outgoing cable is color surface with printed wire number and clear wiring. The sealing strip placed inside the product shell has good waterproof performance (up to IP65). This product is suitable for outdoor, dusty and other harsh places, and is used in industrial driving, hoist, lifting, automobile tailboard and other fields.

⊹ Product Features

1. With 9 function buttons (9 single speed) + E-stop + Rotary key switch.
2. Control contact is up to 10.
3. With battery voltage warning device, the power supply is cut off during low power.
4. Safety switch key is to prevent from unauthorized user.
5. Program the button function by computer software.
6. Up/down, east/west, south/north can be programmed to interlock or non-interlock, toggle or normal etc.
7. Spare buttons 1-2 can be programed to be normal, toggle, interlock, on/off etc.
8. Start button can be program to be start, normal, toggle function etc.

⊹ Product material

The main body of the push button switch is Glass fiber reinforced nylon.





Transmitter Receiver
Frequency 430-440MHz
Max Output Power 10dBm Sensitivity -116dBm
Distance 200m Power dissipation <5W
Coding number 420000000
Impedance (Built-in),50Ω
Protection class IP65 Protection class IP65
Shell material glass fiber reinforced nylon 6
Working remp -35°C~+55°C Working remp -35°C~+70°C
Supply Voltage DC9V(6F22X1) Supply Voltage

36V/220V/380V

ACDC12V/72V

50Hz/60Hz

customizable

Operating current <1mA
Weight 150g Weight 500g
Relative humidity 90%RH
Atm 86-106KPa
Field conditions Try to avoid stirong vibration and strong magnetic field position
