PUSH BUTTON SWITCH XDL32 SERIES

Home  > PRODUCT  > Push Button Switch  > Push Button Switch XDL32 Series  >

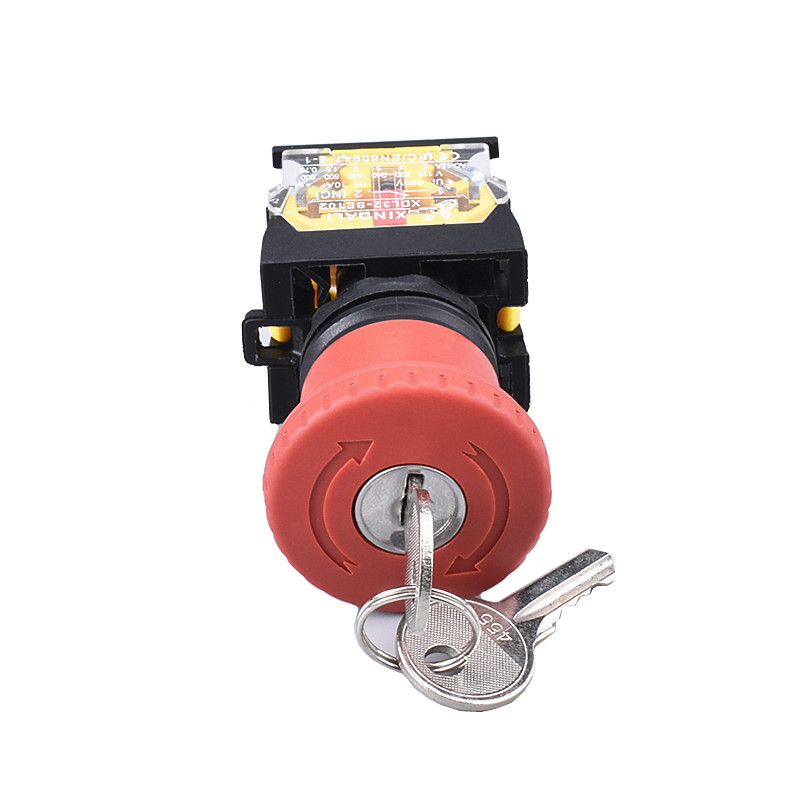

industrial key lock elevator emergency key push button switch XDL32-ES142

这里可以自定义设置
industrial key lock elevator emergency key push button switch XDL32-ES142
B站不支持收货地址
B站不支持库存规格
Model:
XDL32-ES142
MOQ:
240
Payment:
T/T L/C
Brand:
XINDALI
Delivery time:
One week
Start Port:
Shanghai/ningbo
Certification:
ISO9001 RoSH CE UL TUV
参数暂无数据
多属性暂无数据

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

Product Description

⊹ Characteristic:waterproof level IP67 Easy installation long service life,Higher performance than LAY series

⊹ Product Features:It is used for controlling signal and interlocking purposes.It is used for controlling the circuit of elecromagnetic starter,contactor,relay and so on.The pushbutttons with indicator are applied to place where signal indicators are needed as well.

⊹ Product material:The main body of the push button is alloy and plastic.

Conforming to standards asIEC60947-5-1:GB/T14048.GB14048.5
Ambient temperatureoperating temperature:5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity35~85%RH
Vibration frequencyConforming to IEC 68-2-6
Impact resistanceConforming to IEC 68-2-27
Pollution grade3
Installation sortClassⅢ
Protection gradeOrdinary:IP40 IP54

Protection:IP65 IP66 IP67 IP68
Mechanical lifepushbutton:300*10 push and pull type emergency button:30*10
Fastening torque0.8Nm(MAX:1.2Nm)

Product Details

BLOCK 23493
