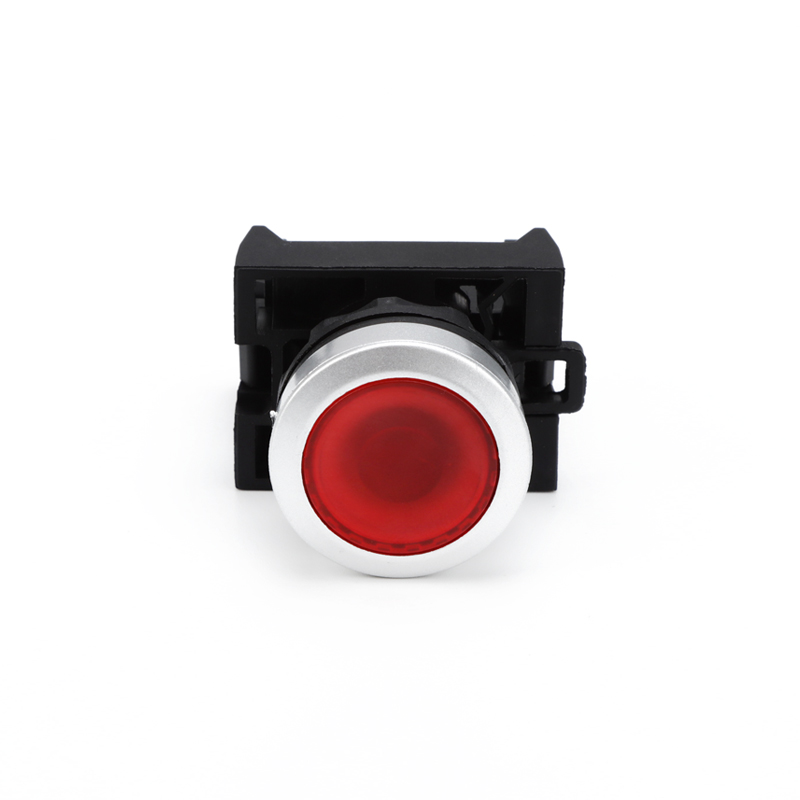

elevator red led ip67 switch electric push button with light XDL22-CW3462

Share to:

elevator red led ip67 switch electric push button with light XDL22-CW3462

Model:: XDL22-CW3462

MOQ:: 240

Payment:: T/T L/C

Brand:: XINDALI

Delivery time:: One week

Start Port:: Shanghai/ningbo

Certification:: ISO9001 RoSH CE UL TUV

SKU:
Availability:



Inquire

Product Description

Product Description

⊹ Characteristic：waterproof level IP67 Easy installation long service life,Higher performance than LAY series

⊹ Product Features：It is used for controlling signal and interlocking purposes.It is used for controlling the circuit of elecromagnetic starter,contactor,relay and so on.The pushbutttons with indicator are applied to place where signal indicators are needed as well.

⊹ Product material：The main body of the push button is alloy and plastic.

Conforming to standards as	IEC60947-5-1:GB/T14048.GB14048.5
Ambient temperature	operating temperature:5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity	35~85%RH
Vibration frequency	Conforming to IEC 68-2-6
Impact resistance	Conforming to IEC 68-2-27
Pollution grade	3
Installation sort	ClassⅢ
Protection grade	Ordinary:IP40 IP54
	Protection:IP65 IP66 IP67 IP68
Mechanical life	pushbutton:30010 push and pull type emergency button:3010
Fastening torque	0.8Nm(MAX:1.2Nm)

Product Details

elevator position switch push button switch switch push button push button on off switch push switch plastic pushbutton plastic push button waterproof push button switch waterproof button industrial pushbutton switch
