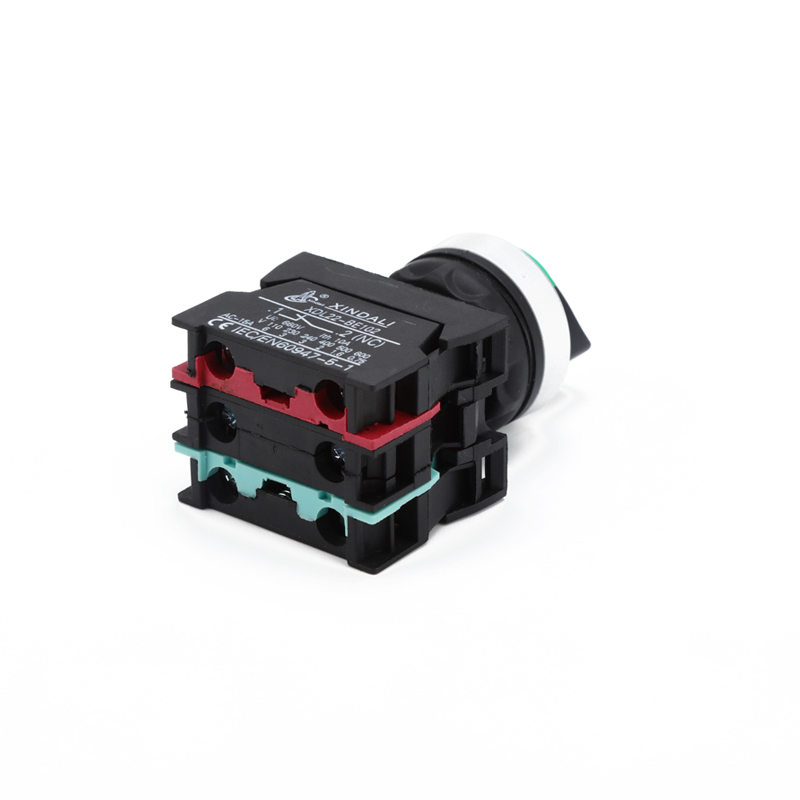

IP67 spring return 2 plastic position indicator switch selector light XDL22-CK3365

Share to:

IP67 spring return 2 plastic position indicator switch selector light XDL22-CK3365

Model:: XDL22-CK3365

MOQ:: 240

Payment:: T/T L/C

Brand:: XINDALI

Delivery time:: One week

Start Port:: Shanghai/ningbo

Certification:: ISO9001 RoSH CE UL TUV

SKU:
Availability:



Inquire

Product Description

Product Description

⊹ Characteristic：waterproof level IP67 Easy installation long service life,Higher performance than LAY series

⊹ Product Features：It is used for controlling signal and interlocking purposes.It is used for controlling the circuit of elecromagnetic starter,contactor,relay and so on.The pushbutttons with indicator are applied to place where signal indicators are needed as well.

⊹ Product material：The main body of the push button is alloy and plastic.

Conforming to standards as	IEC60947-5-1:GB/T14048.GB14048.5
Ambient temperature	operating temperature:5℃~+55℃ storage temperature:-25℃~+70℃
Operating and storage air relative humidity	35~85%RH
Vibration frequency	Conforming to IEC 68-2-6
Impact resistance	Conforming to IEC 68-2-27
Pollution grade	3
Installation sort	ClassⅢ
Protection grade	Ordinary:IP40 IP54
	Protection:IP65 IP66 IP67 IP68
Mechanical life	pushbutton:30010 push and pull type emergency button:3010
Fastening torque	0.8Nm(MAX:1.2Nm)

Product Details

emergency stop button switch emergency stop push button switch emergency stop push button Emergency Stop Switch emergency stop plastic push button emergency stop waterproof switch mushroom head push button switch push button switch push button on off switch waterproof push button switch
