What is the XDL10 New Generation Series

Views: 0     Author: Site Editor     Publish Time: 2022-12-14      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

XDL10 Series Control Switch is aesthetic design, durable quality, lightweight holding, reasonable structure
with various functions; UP and DOWN direction controlling under protection of circuit interlocking and ensure the power circuit is
safe and reliable; Assembled with cable gland and waterproof sealing to reach good waterproof performance (up to IP65); This
product is suitable for outdoor, dusty and other harsh environment.

Product parameters


Standard usage status
Operating ambient temperature
-20~+55℃
Ambient humidity
45~85%
contact resistance
≤50mΩ
insulation resistance
≥100mΩ
Pollution grade
Withstand voltage
AC2.5kV/min
Mechanical life
>1 million times
Electrical life
>100000 times
Cable length
2m(it can be customized )
Wire gauge
1mm(18AWG)
Protection degree
IP65
Rated insulation voltage
AC600V
Rated thermal current
10A
Rated use voltage
120V
240V
400V
Rated usage current
AC
AC-15
6A
3A
1.5A
DC
DC-13
0.55A
0.27A
0.15A


About this item

  • [Feature] 4 wire double acting hydraulic power unit 12V DC, small area, use widely, easy to carry.

  • [Wide Use] Fits most double-acting hydraulic pumps power units including MTE, Monarch, Bucher Dyna-Jack, SPX, KTI, Bosch and others.

  • [ Reasonable Design] 2-button pendant control is most commonly used as a dump trailer remote, which is built of a high-impact, highly visible plastic with a standard 15' cord. Powered by 12 volts DC, well constructed. High quality ABS material protective shell for long-term use.

  • [Wire Connection] For 4 wires(double-acting) dump trailer control: Use wire with metal round head connect to raising valve and lower valve. Use wire with circle connect to battery positive and starter.

  • [Package Include] Comes with Mounting Holster +Magnetic Back + 4 Wires--Red - Power (to Battery),Blue - Raise (to Lift Valve),Yellow - Down (to Lowering Valve) ,Black - Start Master(to Starter). Notice: If you have any problems,pls feel free to contact us.

1

Our hydraulic power unit remote controller are responsibly made with high quality Eco-materials, first choice for your hydraulic dump trailer, lift gate, lifter, stackers truck!

Technical Parameters:
*Model:4/5/6 Wire
*Material: High Quality ABS
*Color: Yellow + Black
*Style: Switch of Dump Trailer
*Wire : 15' Cord for Long Reach
*Buttons: Two Button, Up and Down
*Package Weight: 2.23 Pounds
*Application: Universal for most double acting hydraulic power unit, dump trailer, dump truck, lift gates, elevator lifter, stackers truck, hoist crane.

2 3

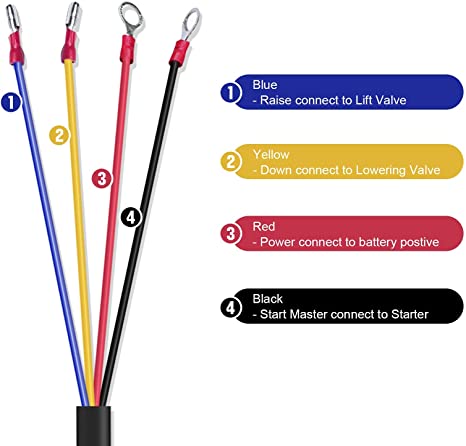

Wiring Method :

-Red - Power (to Battery)
-Blue - Raise (to Lift Valve)
-Yellow - Down (to Lowering Valve)
-Black - Start Master(to Starter)

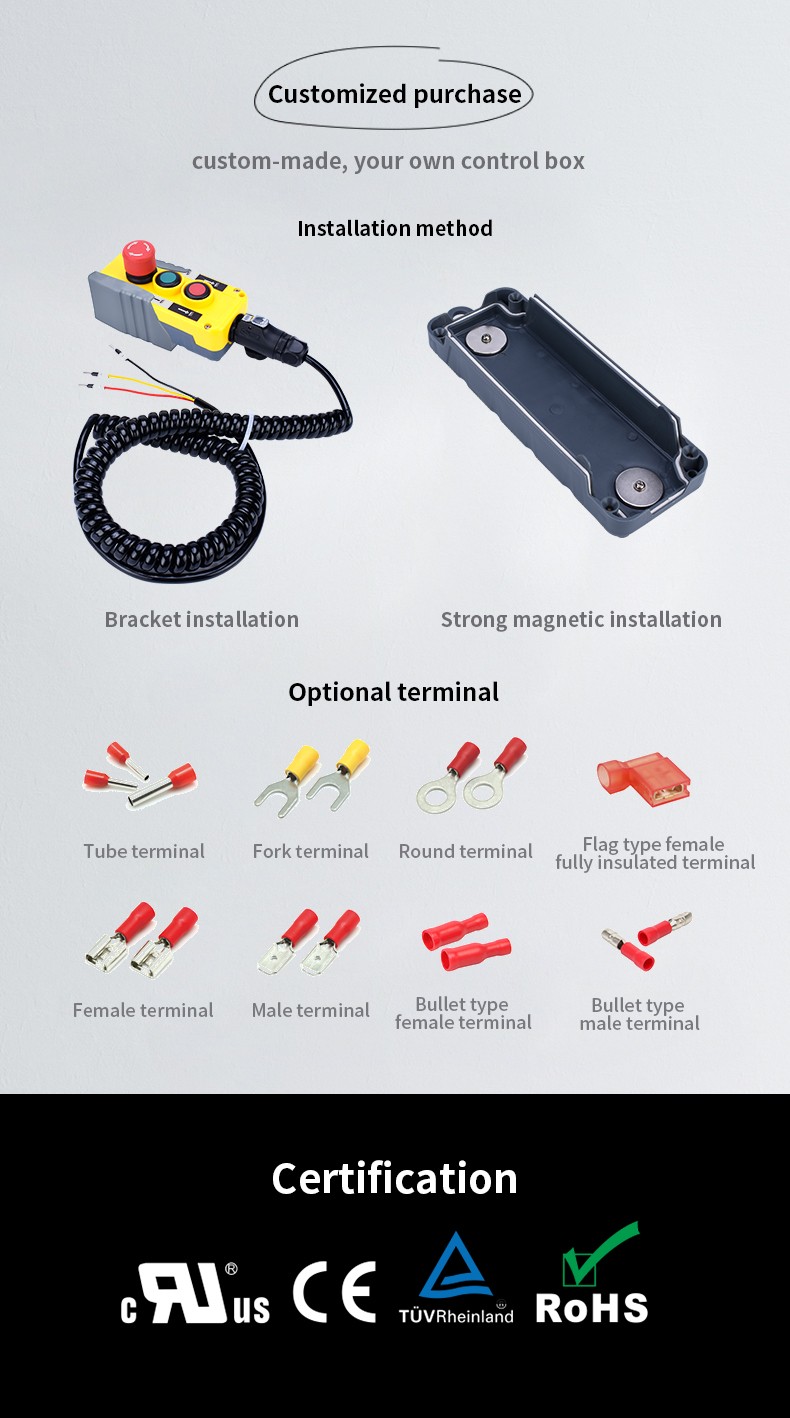

Package Include:

Mounting Holster + Convenient Magnetic Back + 4 Wires(You Can Contact Us When You Have Problems On Use)



Problem example

Question 1:What are the dimensions of the switch unit itself, without the holster thing?

Answer:About 1-3/4” Tx2-1/2”wx4” length


Question 2:Does it come with a wiring diagram?

Answer:Yes wiring paperwork


Question 3:Will this work for electric hoist on 110v?

Answer:They are contact switches. Keep your hot and common wires corresponding to + and - wires.


If you have any questions, please feel free to contact us.
